24176-BE-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 24176-BE-XL
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 380 mm
Outer (D): 620 mm
Width (B): 243 mm
Weight: 290 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 5800 KN
Basic Static Load Rating, Radial (C0r): 9700 KN
Fatigue Load Limit, Radial (Cur): 710000 N
Limiting Speed (nG): 850 r/min
Reference Speed (nϑr): 325 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

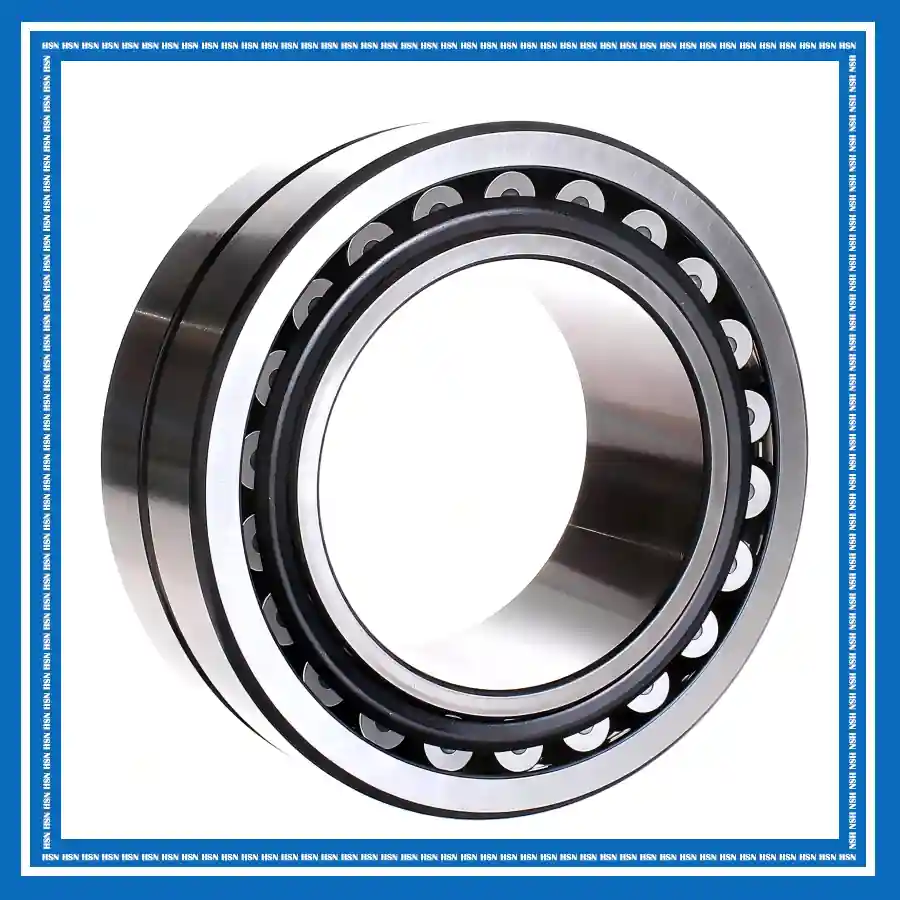

The 24176-BE-XL FAG spherical roller bearing consists of an inner ring, outer ring, two rows of symmetrical spherical rollers, and sheet steel cages. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The BE design incorporates a loose center lip ring, while X-life provides improved load carrying capacity and extended operating life.
The 24176-BE-XL bearing is suitable for mining and cement, steel and metallurgy, paper machinery, material handling, power generation, and heavy industrial equipment. Its high load capacity and self-aligning capability make it suitable for applications exposed to heavy radial loads, vibration, shaft deflection, and alignment deviations.
