23292-BEA-XL-K-MB1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 23292-BEA-XL-K-MB1
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 460 mm
Outer (D): 830 mm
Width (B): 296 mm
Weight: 695 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 9200 KN
Basic Static Load Rating, Radial (C0r): 14700 KN
Fatigue Load Limit, Radial (Cur): 930000 N
Limiting Speed (nG): 690 r/min
Reference Speed (nϑr): 295 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

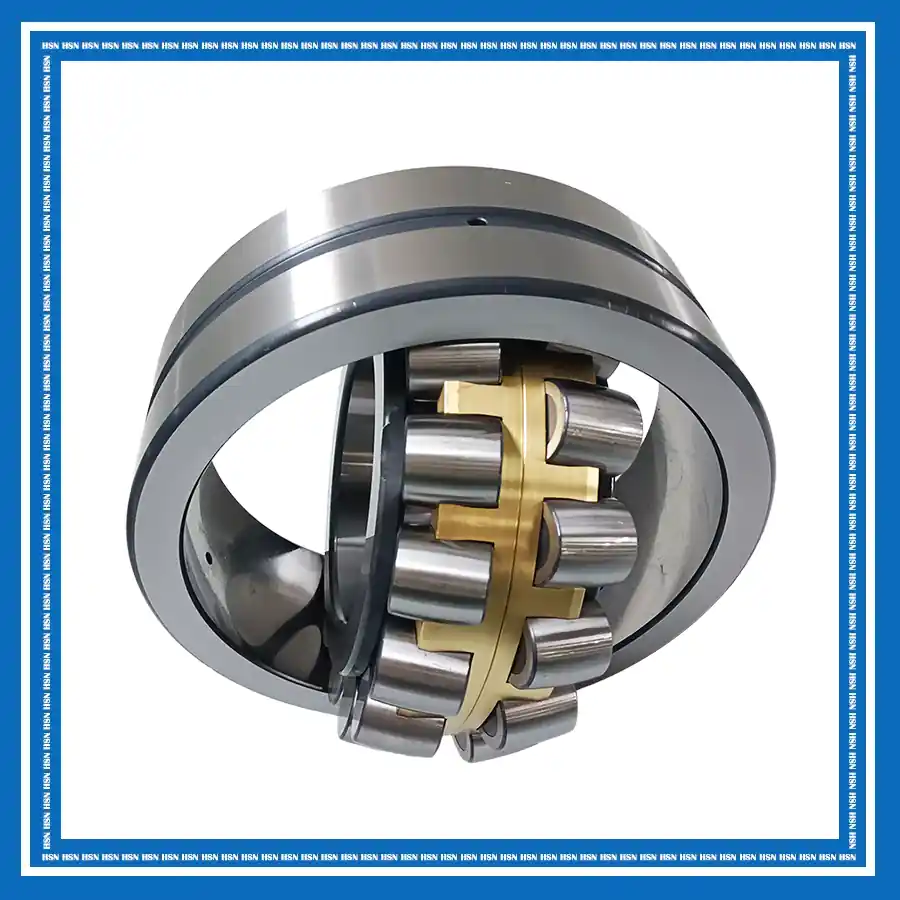

The 23292-BEA-XL-K-MB1 FAG spherical roller bearing consists of an inner ring, outer ring, two rows of symmetrical spherical rollers, and a solid brass cage. Its self-aligning design compensates for angular misalignment while supporting high radial loads and axial loads in both directions. The BEA design uses a loose center rib ring, while X-life improves operating performance and service life. In addition, the K tapered bore has a 1:12 taper, and the MB1 single-piece solid brass cage is guided on the inner ring, providing robust support under demanding operating conditions.
The 23292-BEA-XL-K-MB1 bearing is suitable for mining and cement, steel and metallurgy, paper machinery, material handling, industrial transmissions, and heavy industrial equipment. Its high load capacity, self-aligning capability, and robust brass cage make it suitable for applications exposed to heavy loads, vibration, shock loads, and alignment deviations.
