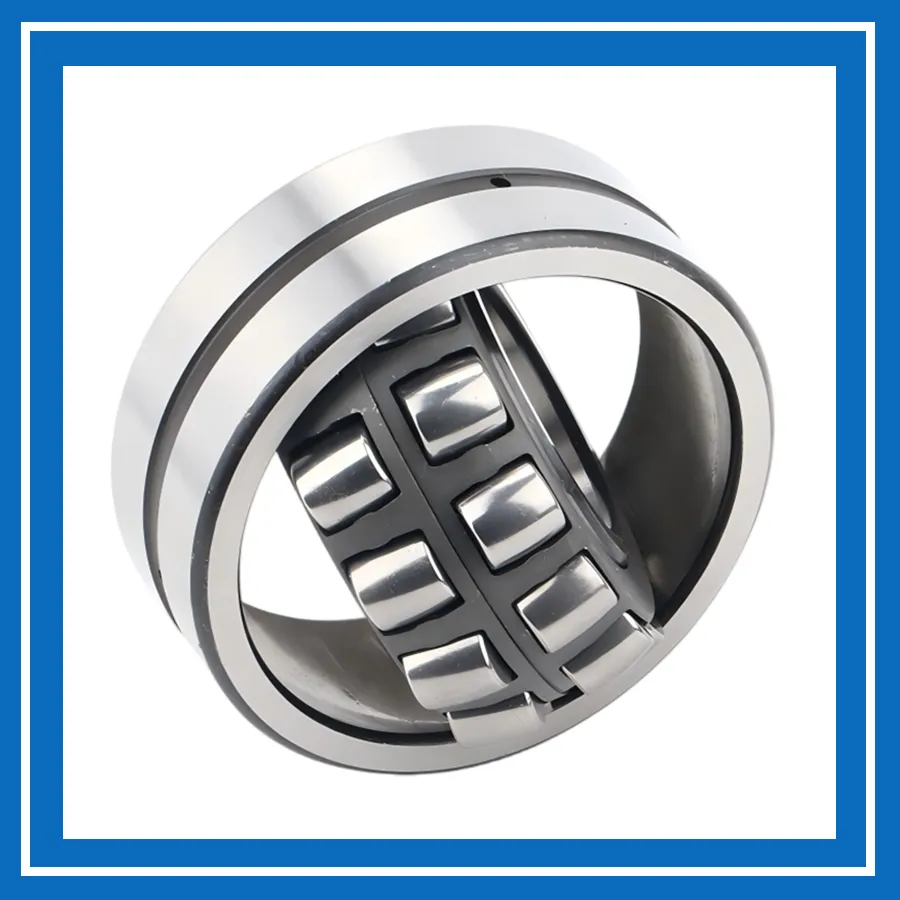

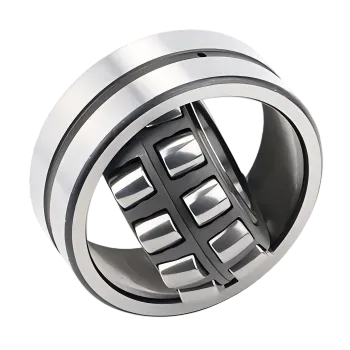

Spherical Roller Bearings
Spherical roller bearings feature spherical rollers and a spherical outer ring raceway, enabling them to accommodate misalignment and shaft deflection. They are primarily designed to carry heavy radial loads while also supporting moderate axial loads. With their robust design and self-aligning capability, these bearings ensure reliable operation even under misalignment or harsh operating conditions.
HSN offers a comprehensive range of spherical roller bearings in various designs, sizes, and configurations to meet demanding application requirements. Customization options include internal clearance, cage types, lubrication, and solutions for high-load and severe operating conditions—ensuring high load capacity, durability, and long service life across heavy-duty applications.
STRUCTURE AND FEATURES
① Single-row Spherical Roller Bearings
② Double-row Spherical Roller Bearings
③ Cylindrical Bore Spherical Roller Bearings
④ Tapered Bore Spherical Roller Bearings
⑤ Open Type Spherical Roller Bearings
⑥ Sealed Type Spherical Roller Bearings
CUSTOMIZABLE SERVICES
① Material Customization
② Precision Class
③ Internal Clearance
④ Lubrication Method
⑤ High-Temperature /Corrosion-Resistant Design
⑥ Brand Packaging Customization

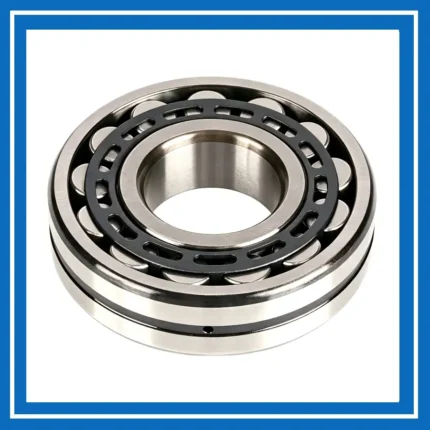

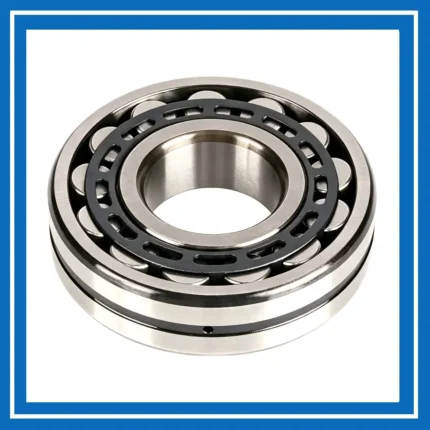

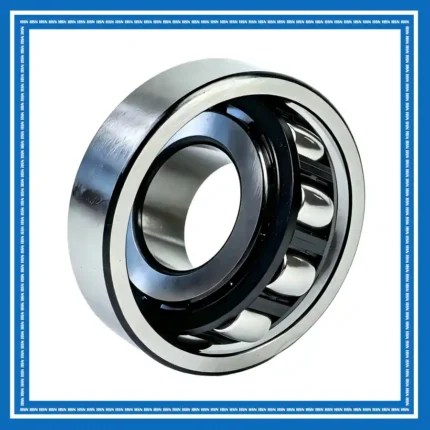

Best-Selling Model of Spherical Roller Bearings
Classification of Spherical Roller Bearings by Cage
CA Cage
The CA cage features a machined brass design with high strength and rigidity, making it the most common structure in spherical roller bearings. It is suitable for heavy-load and impact conditions, offering stable performance and good cost efficiency.

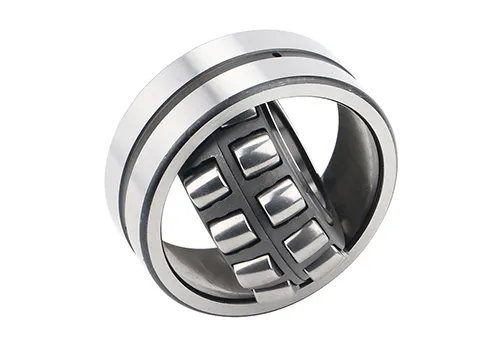

CC Cage
The CC cage adopts a pressed steel design, increasing the rolling element ratio to enhance load capacity. It is suitable for high-load applications, but with relatively lower vibration resistance, making it ideal for stable operating conditions.

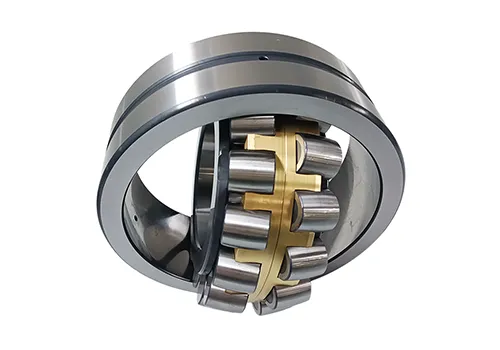

MB Cage
The MB cage is a two-piece machined brass design that reduces additional stress caused by speed differences between roller rows. It helps protect the bearing and is well suited for high-speed or variable load conditions, ensuring stable operation.

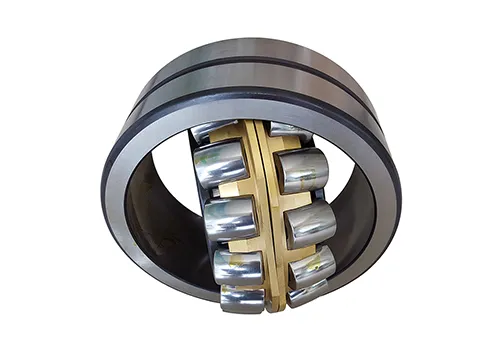

MA Cage
The MA cage is an optimized version of the MB design, offering improved resistance to centrifugal forces and vibration. It is suitable for high-vibration and heavy-duty applications, helping extend bearing service life.
Advantages and Features
- High Load Capacity: The spherical roller design enables the bearing to support heavy radial loads as well as moderate axial loads, making it suitable for demanding applications.
- Excellent Self-aligning Capability: The spherical raceway allows automatic compensation for shaft misalignment and deflection, ensuring stable operation.
- Adaptability to Harsh Conditions: The robust design makes it suitable for shock loads and contaminated environments, providing high reliability.
- Smooth Operation: Optimized contact between rollers and raceways helps reduce vibration and noise.
- Long Service Life: Reduced stress concentration and proper lubrication conditions contribute to extended bearing life.
- Wide Range of Designs: Available in various cage types, sealing options, and configurations to meet diverse operating requirements.
Applications
Spherical roller bearings are designed to accommodate heavy radial loads and misalignment, making them suitable for demanding industrial applications. Their versatility is reflected in a wide range of designs, sizes, and configurations, enabling reliable performance under harsh operating conditions. Typical applications of spherical roller bearings include:
- Mining machinery industry
- Metallurgical and steel industry
- Wind power industry
- Paper industry
- Oil and gas transportation industry
- Construction machinery
- Logistics and transportation
Interchangeable Brands
Global mainstream spherical roller bearing brands are systematically benchmarked and technically analyzed, focusing on leading international brands such as SKF, FAG and NSK Bearings.The study provides a comprehensive analysis of product structures, performance differences, and key parameters, with in-depth insights spanning material selection, manufacturing processes, and application scenarios—helping users achieve more precise selection and optimized configurations across diverse operating conditions.
- SKF – SKF Group
- FAG – Schaeffler Group
- NSK – NSK Ltd.
- NTN – NTN Corporation
- KOYO – JTEKT Corporation
- TIMKEN – The Timken Company
- ZKL – ZKL Group
- RBC – RBC Bearings Incorporated
- RKB – RKB Bearing Industries Group
- KRW – KRW Leipzig GmbH
- SLF – SLF Fraureuth GmbH
- NACHI – Nachi-Fujikoshi Corp.
