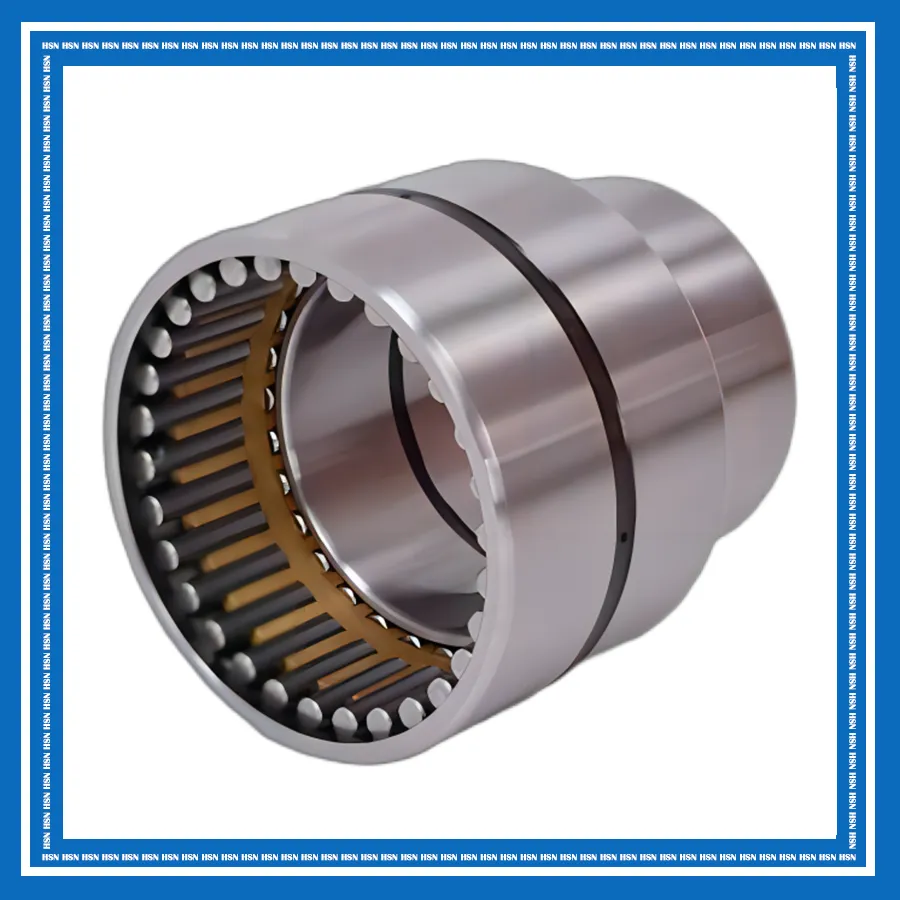

Needle Roller Bearings
Needle roller bearings feature cylindrical rollers with a small diameter and a high length-to-diameter ratio, allowing for a compact design while maintaining high load-carrying capacity. This enables them to support high radial loads within limited installation space. Their space-saving structure makes them particularly suitable for applications where radial dimensions are restricted.
HSN offers a wide range of needle roller bearings in various designs, sizes, and configurations to meet diverse application requirements. Customization options include cage types, materials, lubrication methods, and solutions for demanding operating conditions—ensuring reliable performance, durability, and efficient use of space.
STRUCTURE AND FEATURES
① Needle Roller Bearings Without Inner Ring
② Drawn Cup Needle Roller Bearings
③ Needle Roller Bearings With Machined Rings
④ Needle Roller and Cage Assemblies
⑤ Needle Roller Thrust Bearings
⑥ Combined Needle Roller Bearings
CUSTOMIZABLE SERVICES
① Material Customization
② Precision Class
③ Internal Clearance
④ Lubrication Method
⑤ High-Temperature /Corrosion-Resistant Design
⑥ Brand Packaging Customization

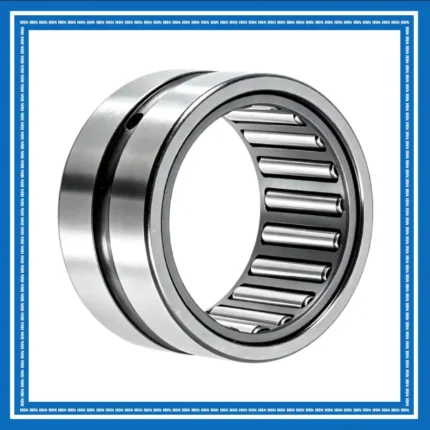

Best-Selling Model of Needle Roller Bearings
Classification of Needle Roller Bearings

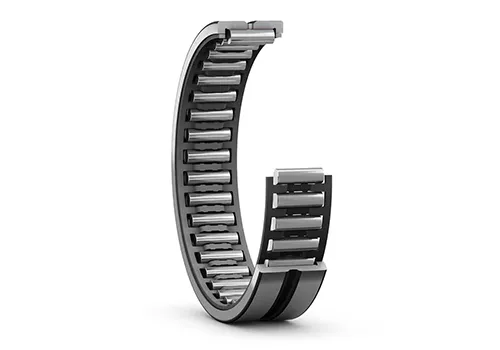

Needle Roller Bearings Without Inner Ring
Needle roller bearings without an inner ring use the shaft as the raceway, enabling a more compact design while increasing system rigidity. This design reduces space requirements and is suitable for applications where the shaft is hardened and ground to serve as a running surface.

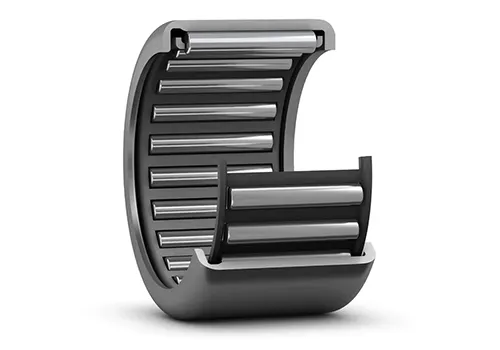

Drawn Cup Needle Roller Bearings
Drawn cup needle roller bearings feature a thin-walled, stamped outer ring design, providing a very compact cross-section with high load-carrying capacity. Their lightweight and space-saving construction allows for easy installation directly into the housing, making them ideal for applications with limited space and cost-sensitive requirements.

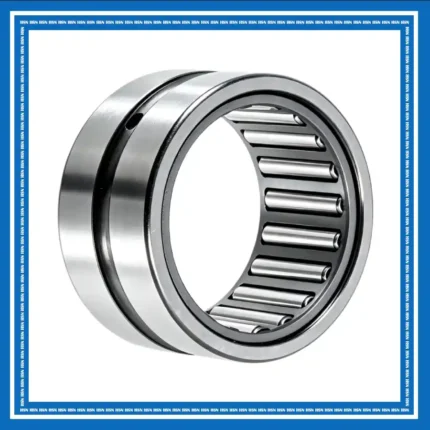

Needle Roller Bearings With Machined Rings
Needle roller bearings with machined ring are designed with precision-machined inner and outer rings, offering high rigidity and load capacity. Their robust construction ensures reliable performance under heavy loads and demanding conditions, making them suitable for applications requiring high accuracy and extended service life.

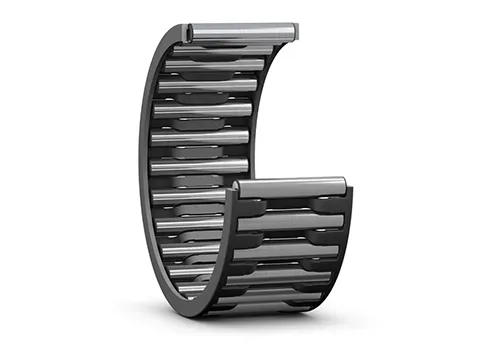

Needle Roller and Cage Assemblies
Needle roller and cage assemblies consist only of rollers and a cage, providing an extremely compact and lightweight solution. They can be mounted directly on shafts and in housings, offering high efficiency and suitability for applications requiring maximum space utilization and high-speed capability.

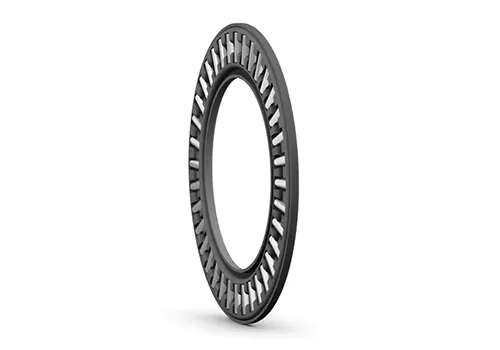

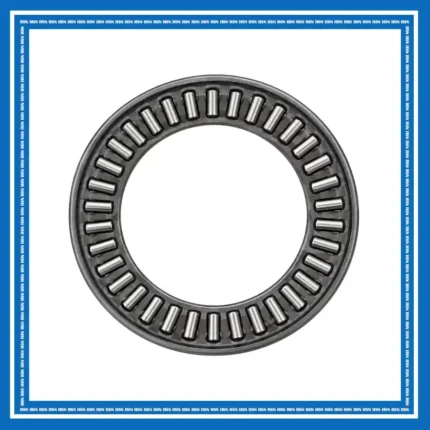

Needle Roller Thrust Bearings
Needle roller thrust bearings are designed to support axial loads while maintaining a compact structure. They are particularly suitable for applications with limited axial space and can be combined with radial bearings to accommodate more complex load conditions.

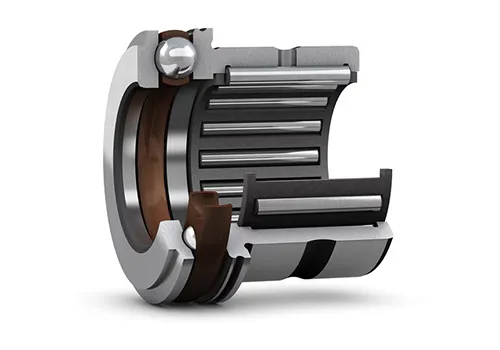

Combined Needle Roller Bearings
Combined needle roller bearings integrate radial needle roller bearings with thrust bearing components, enabling them to support both radial and axial loads. This integrated design simplifies bearing arrangements and is ideal for applications with complex load requirements and limited installation space.
Advantages and Features
- Compact design: The slender needle roller design enables a small radial cross-section while maintaining high load capacity, saving installation space.
- High radial load capacity: Multiple needle rollers provide high load-carrying capability, making it suitable for heavy-load applications.
- Ideal for space-limited applications: Small outer diameter and low cross-section height make it suitable for applications with restricted radial space.
- High rigidity: Line contact between rollers and raceways provides increased stiffness for stable operation.
- Low friction and high efficiency: Optimized rolling contact reduces friction losses and improves operating efficiency.
- Versatile design options: Available in various configurations to meet different application requirements.
Applications
Needle roller bearings feature slender rollers that provide high radial load capacity within a minimal cross-section. Their design ensures efficient load distribution and reliable performance, making them suitable for applications with limited space and demanding operating conditions.Examples of applications include:
- Agriculture
- Textile industry
- Industrial gearboxes
- Pumps and compressors
- Machine tools
- Construction and heavy equipment
- Food and beverage equipment
Interchangeable Brands
Global mainstream needle roller bearing brands are systematically benchmarked and technically analyzed, focusing on leading international brands such as SKF, FAG and NSK Bearings.The study provides a comprehensive analysis of product structures, performance differences, and key parameters, with in-depth insights spanning material selection, manufacturing processes, and application scenarios—helping users achieve more precise selection and optimized configurations across diverse operating conditions.
- SKF – SKF Group
- FAG – Schaeffler Group
- NSK – NSK Ltd.
- NTN – NTN Corporation
- KOYO – JTEKT Corporation
- TIMKEN – The Timken Company
- ZKL – ZKL Group
- RBC – RBC Bearings Incorporated
- RKB – RKB Bearing Industries Group
- KRW – KRW Leipzig GmbH
- SLF – SLF Fraureuth GmbH
- NACHI – Nachi-Fujikoshi Corp.
