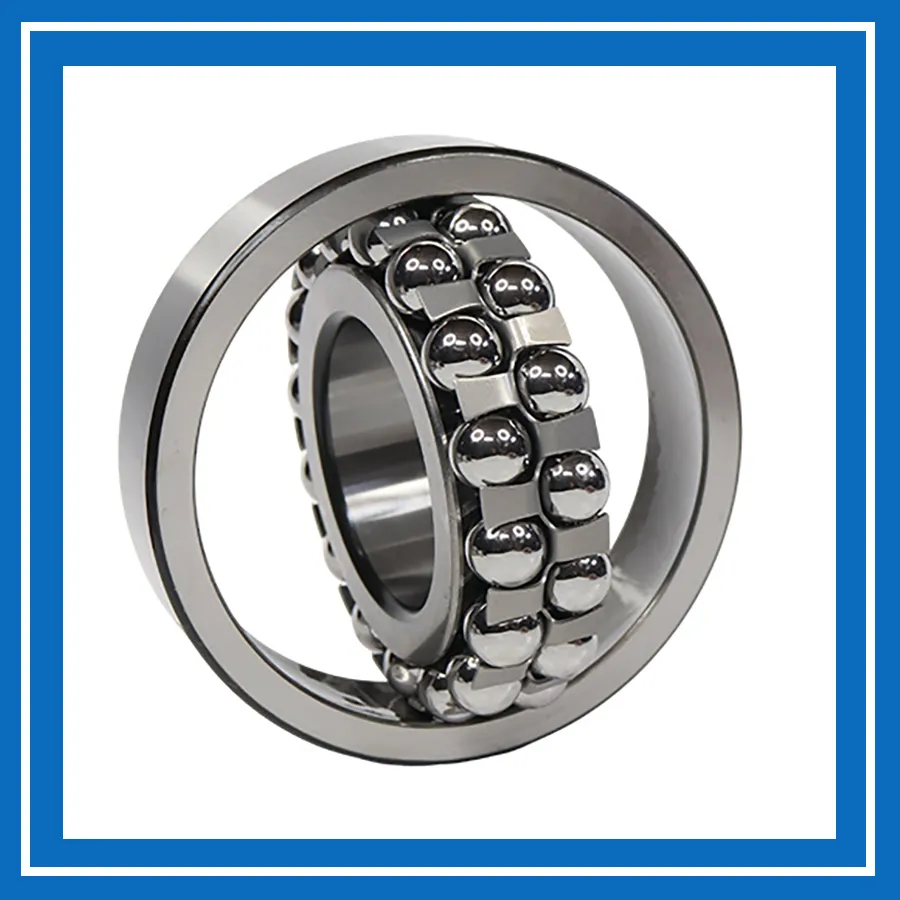

Self-aligning Ball Bearings

Self-aligning ball bearings consist of an inner ring with two raceways, an outer ring with a spherical raceway, balls, and a cage. This design allows the bearing to automatically compensate for shaft misalignment and deflection. They can accommodate radial loads and moderate axial loads in both directions, offering smooth operation and reliable performance even under misaligned conditions.

HSN offers a complete range of self-aligning ball bearings in both cylindrical and tapered bore designs, with various cage materials including steel, nylon, and brass. Customization options are available to meet specific operating requirements, helping improve alignment tolerance, reduce vibration, and enhance overall system reliability.

STRUCTURE AND FEATURES

① Cylindrical Bore Self-aligning Ball Bearings

② Tapered Bore Self-aligning Ball Bearings

CUSTOMIZABLE SERVICES

① Material Customization

② Precision Class

③ Internal Clearance

④ Lubrication Method

⑤ High-Temperature /Corrosion-Resistant Design

⑥ Brand Packaging Customization

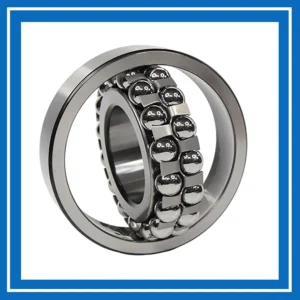

Best-Selling Model of Self-aligning Ball Bearings

Classification of Self-aligning Ball Bearings by Cage

Steel Cage

Self-aligning ball bearings with pressed steel cages feature a simple yet robust structure, making them a cost-effective and reliable solution. They are well suited for general operating conditions, offering a good balance of strength, durability, and versatility. Their design supports stable operation while maintaining efficiency across a wide range of standard applications.

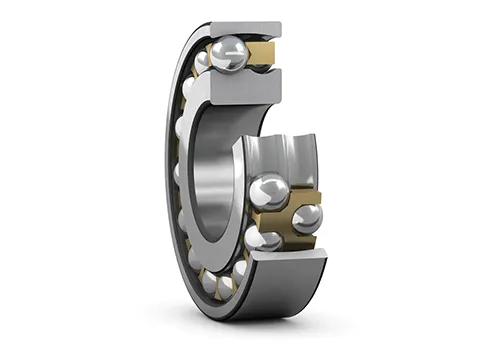

Brass Cage

Self-aligning ball bearings with brass cages offer high strength, excellent durability, and superior impact resistance. They are particularly suitable for heavy-load and high-temperature operating conditions. The robust cage design ensures stable performance, improves operational reliability, and allows the bearing to perform consistently even in demanding and complex industrial environments.

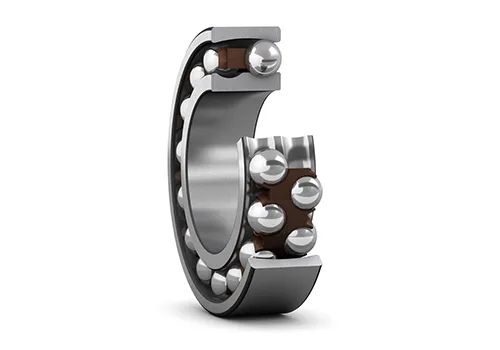

Nylon Cage

Self-aligning ball bearings with nylon cages are lightweight and designed to reduce friction, resulting in quieter operation and improved efficiency. They are ideal for high-speed and low-vibration applications, helping to minimize noise and wear. The cage material also contributes to smoother running performance and enhanced overall operational stability.

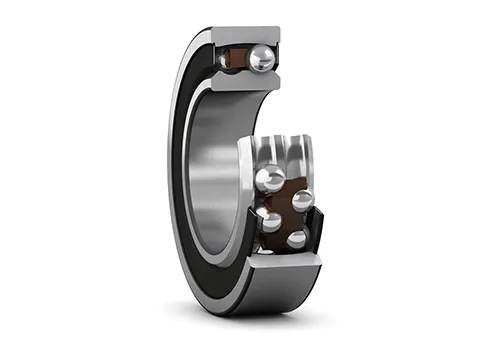

Sealed Design

Sealed self-aligning ball bearings feature integrated seals on both sides to prevent dust, moisture, and contaminants from entering while retaining lubrication. This design preserves self-aligning capability and improves sealing performance, making them suitable for contaminated or hard-to-maintain environments, ensuring reliable operation and extended service life.

Advantages and Features

Self-aligning capability: Accommodates both static and dynamic misalignment, effectively compensating for shaft deflection and ensuring stable operation.
High-speed performance: Low friction and reduced heat generation enable reliable operation even at high speeds.
Low friction and heat generation: Optimized raceway design minimizes friction and heat, improving overall efficiency.
Low maintenance and extended service life: Lower operating temperatures help extend bearing life and reduce maintenance intervals and costs.
Excellent performance under light loads: Low minimum load requirements make these bearings suitable for light or variable load conditions.
Low noise and vibration: Smooth operation helps reduce overall noise and vibration levels, ideal for applications such as fans.

Applications

Self-aligning ball bearings are designed to accommodate misalignment and shaft deflection, ensuring reliable performance under varying conditions. They are available in a range of designs, bore types, and cage materials to suit different requirements. Here are examples of applications in which self-aligning ball bearings might be used:

Industrial fans
Agricultural machinery
Textile machine

Paper industry
Material handling
Food and beverage equipment

Interchangeable Brands

Global mainstream self-aligning ball bearing brands are systematically benchmarked and technically analyzed, focusing on leading international brands such as SKF, FAG and NSK Bearings.The study provides a comprehensive analysis of product structures, performance differences, and key parameters, with in-depth insights spanning material selection, manufacturing processes, and application scenarios—helping users achieve more precise selection and optimized configurations across diverse operating conditions.
