3007-B-2RS-TVH
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3007-B-2RS-TVH
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 62 mm
Width (B): 20 mm
Weight: 0.224 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 24000 N
Basic Static Load Rating, Radial (C0r): 19100 N
Fatigue Load Limit, Radial (Cur): 970 N
Limiting Speed (nG): 6400 rpm
Reference Speed (nϑr): – rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

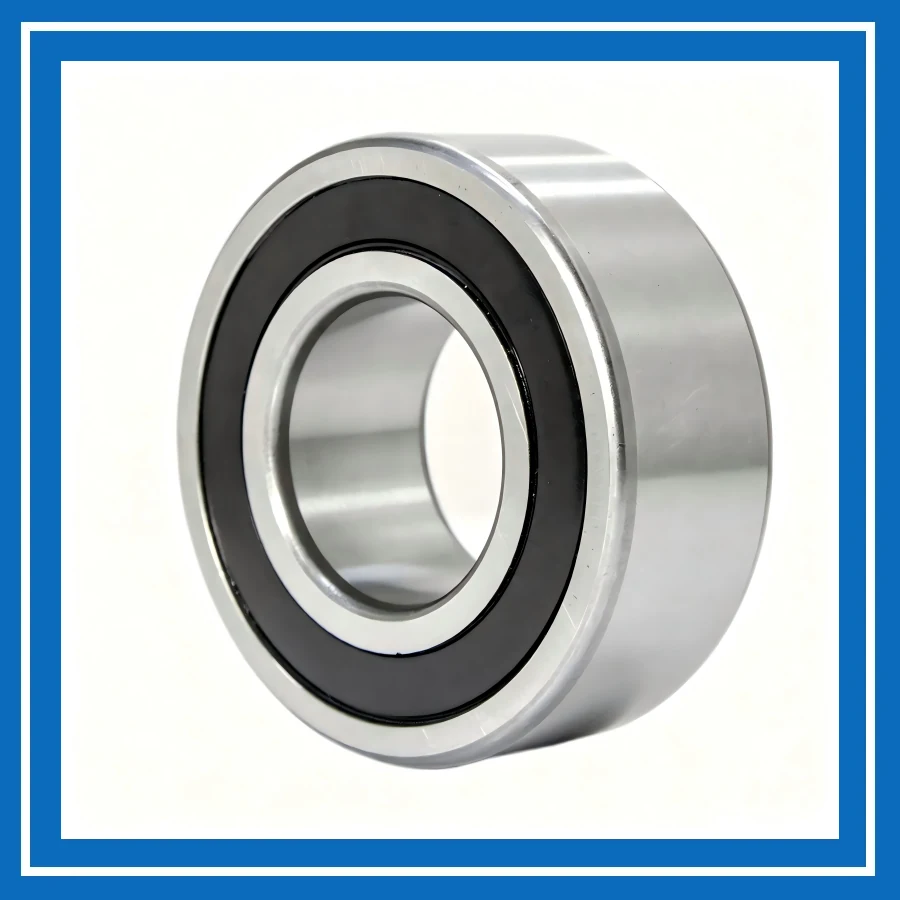

The 3007-B-2RS-TVH FAG double row angular contact ball bearing consists of an inner ring, an outer ring, two rows of balls, a solid cage made from glass-fiber reinforced polyamide PA66, and contact seals on both sides. The double-row design supports radial loads and axial loads in both directions while also accommodating tilting moments. The 2RS seals help protect against contamination and retain grease, while the lightweight TVH cage provides reliable ball guidance and smooth operation.
The 3007-B-2RS-TVH bearing is widely used in packaging machinery, conveying equipment, agricultural machinery, elevators, and compact industrial drive systems. It is particularly suitable for applications requiring combined load capacity, bidirectional axial support, effective sealing, and reliable continuous operation.
