3203-BD-XL-2HRS-TVH
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3203-BD-XL-2HRS-TVH
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 17 mm
Outer (D): 40 mm
Width (B): 17.5 mm
Weight: 0.093 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 15500 N
Basic Static Load Rating, Radial (C0r): 9500 N
Fatigue Load Limit, Radial (Cur): 640 N
Limiting Speed (nG): 14600 rpm
Reference Speed (nϑr): – rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

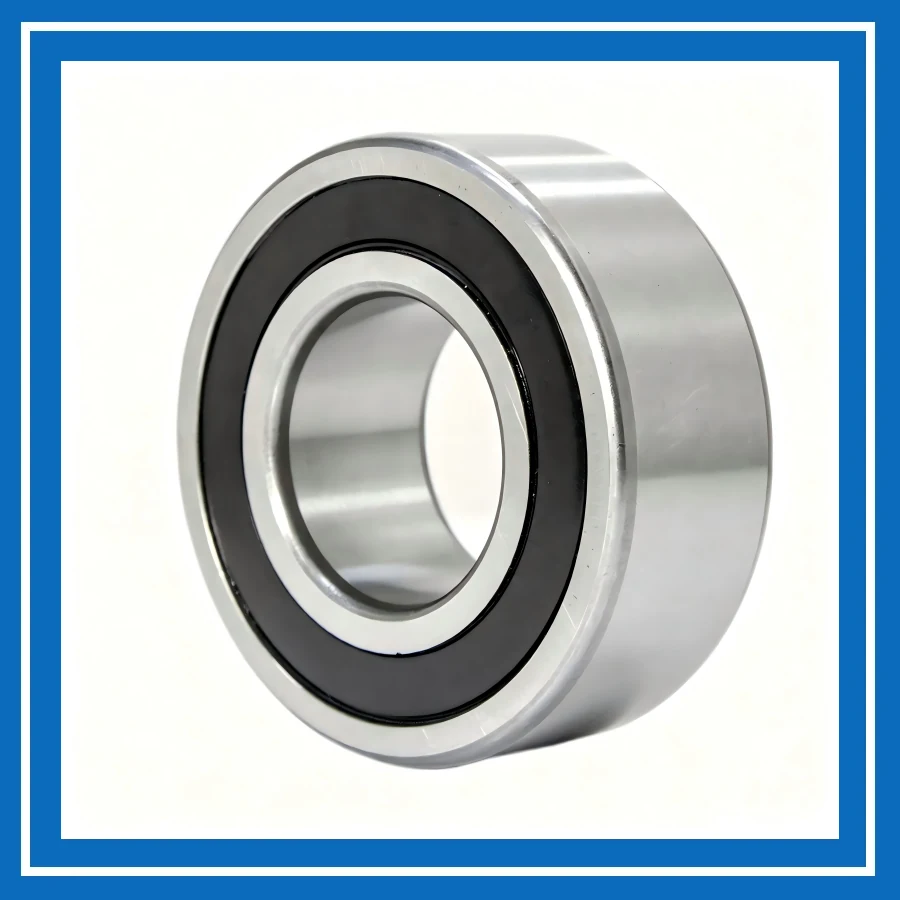

The 3203-BD-XL-2HRS-TVH FAG double row angular contact ball bearing consists of an inner ring, an outer ring, two rows of balls, a solid cage made from glass-fiber reinforced polyamide PA66, and contact seals on both sides. The 30° contact angle and optimized internal design provide high radial and bidirectional axial load capacity while also supporting tilting moments. The X-life design enhances load-carrying performance, while the 2HRS seals help protect against contamination and retain lubricant for reliable operation.
The 3203-BD-XL-2HRS-TVH bearing is widely used in conveying equipment, packaging machinery, elevators, agricultural machinery, and compact industrial drive systems. It is particularly suitable for applications requiring combined load capacity, rigid bearing support, effective sealing, and reliable continuous operation in limited installation space.
