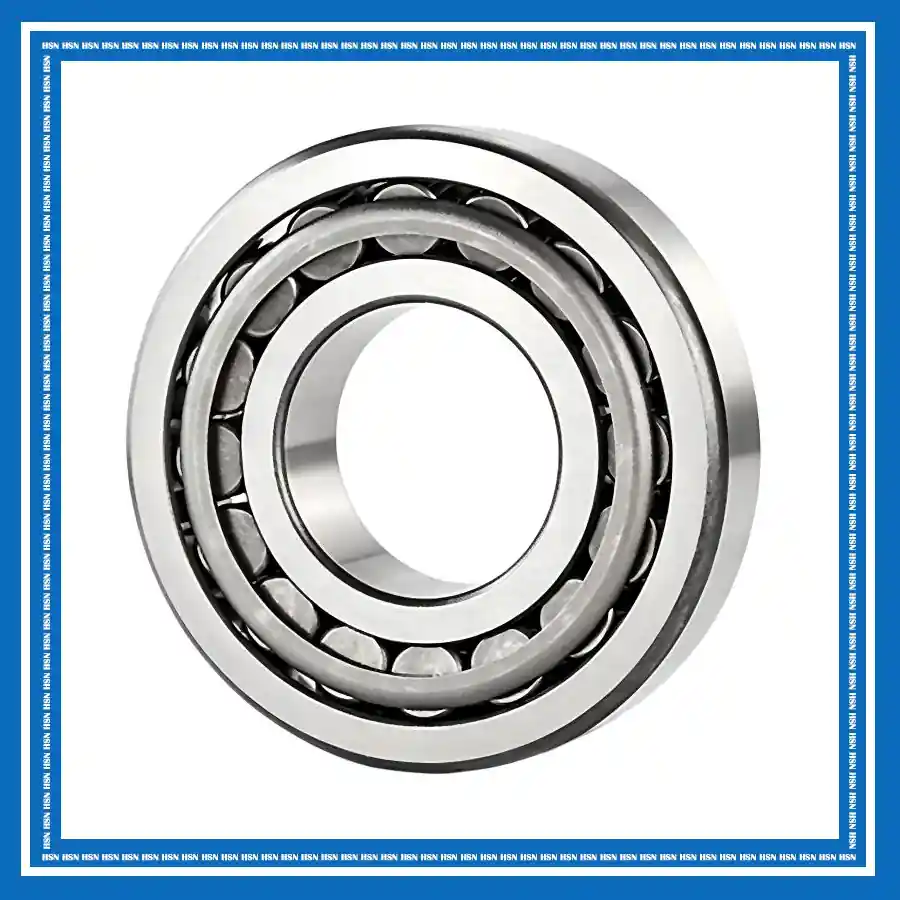

33213-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 33213-XL
Interchangeable Number: T3EE065
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 65 mm
Outer (D): 120 mm
Width, Inner Ring (B): 41 mm
Width, Outer Ring (C): 32 mm
Width, Total (T): 41 mm
Weight: 2.02 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 242000 N
Basic Static Load Rating, Radial (C0r): 285000 N
Fatigue Load Limit, Radial (Cur): 46500 N
Limiting Speed (nG): 6300 rpm
Reference Speed (nϑr): 3750 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Tapered Roller Bearings Guide
Product Description
The 33213-XL FAG single row tapered roller bearing combines tapered contact geometry with X-life performance. It provides high radial load capacity, axial load capability in one direction, and high rigidity. Improved rolling contact conditions help reduce friction, enhance operating efficiency, and extend service life under combined loads.
The 33213-XL bearing is suitable for agricultural machinery, pumps and compressors, machine tools, power generation, and industrial production equipment. Its efficient operating characteristics and combined load capacity support continuous operation and extended service intervals across diverse applications.
