33218
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 33218
Interchangeable Number: T3FE090
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 90 mm
Outer (D): 160 mm
Width, Inner Ring (B): 55 mm
Width, Outer Ring (C): 42 mm
Width, Total (T): 55 mm
Weight: 4.76 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 345000 N
Basic Static Load Rating, Radial (C0r): 530000 N
Fatigue Load Limit, Radial (Cur): 64000 N
Limiting Speed (nG): 4200 rpm
Reference Speed (nϑr): 2950 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Tapered Roller Bearings Guide
Product Description

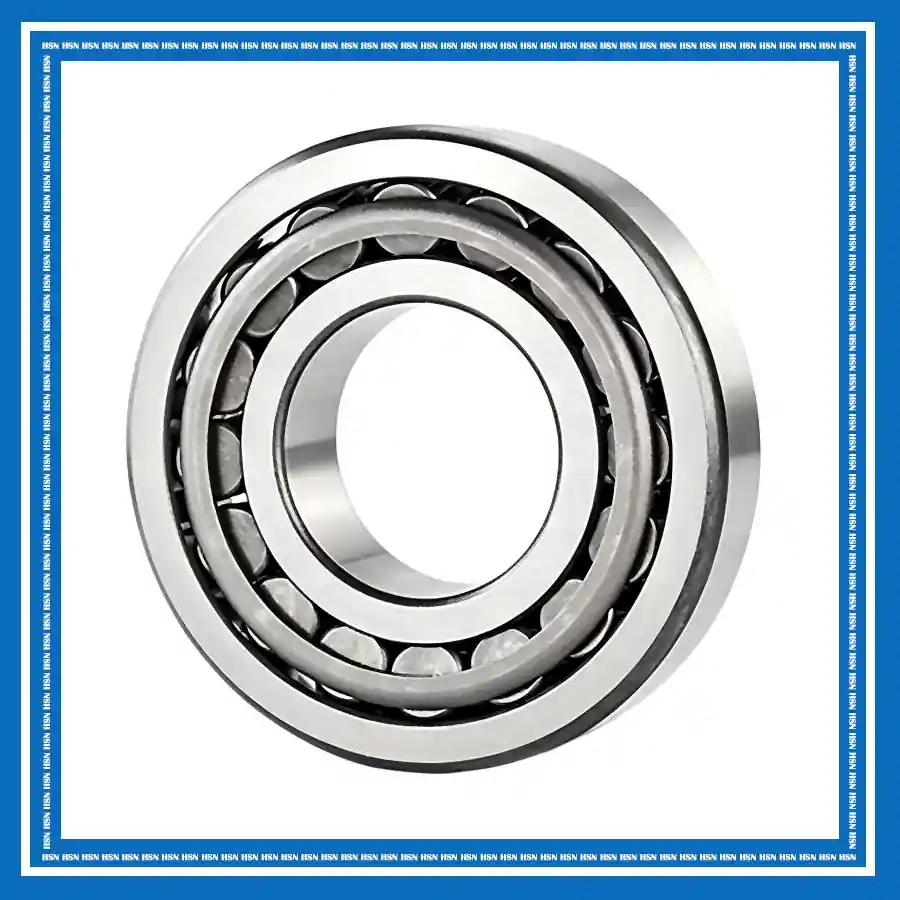

The 33218 FAG single row tapered roller bearing consists of an inner ring, outer ring, tapered rollers, and a cage. Its tapered roller and raceway geometry provides high radial load capacity, axial load capability in one direction, and high rigidity. The design promotes effective load distribution and stable operation under combined loads.
The 33218 bearing is suitable for industrial machinery, mining and cement, steel production, material handling, marine equipment, and construction machinery. Its combined radial and axial load capacity provides dependable support across a broad range of industrial operating conditions.
