4210-B-TVH
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 4210-B-TVH
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 50 mm
Outer (D): 90 mm
Width (B): 23 mm
Weight: 0.68 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 46500 N
Basic Static Load Rating, Radial (C0r): 42000 N
Fatigue Load Limit, Radial (Cur): 2130 N
Limiting Speed (nG): 6300 rpm
Reference Speed (nϑr): 6300 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

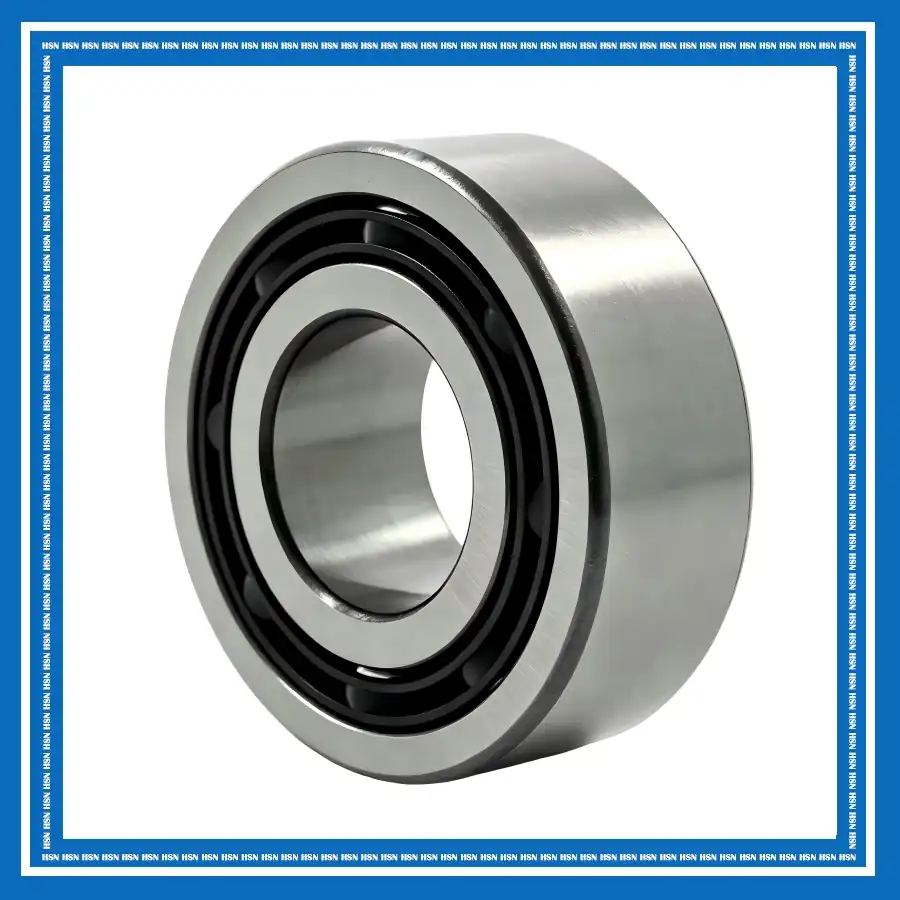

The 4210-B-TVH FAG deep groove ball bearing consists of an inner ring, an outer ring, two rows of balls, and a solid cage made from glass-fibre reinforced polyamide PA66. The B modified internal construction and double-row design provide higher load-carrying capacity within a compact space. Meanwhile, the TVH cage provides reliable ball guidance and stable operation.
The 4210-B-TVH bearing is suitable for applications where a single-row deep groove ball bearing cannot provide sufficient load capacity. It can support radial loads, axial loads in both directions, and tilting moments. Therefore, it is well suited for electric motors, pumps, gear drives, industrial machinery, and other compact equipment requiring reliable load support and continuous operation.
