61804
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 61804
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 20 mm
Outer (D): 32 mm
Width (B): 7 mm
Weight: 0.016 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 4000 N
Static Radial Load Rating (C0): 2500 N
Limiting Speed – Oil: 21000 rpm
Limiting Speed – Grease: 25000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Deep Groove Ball Bearings
Product Description

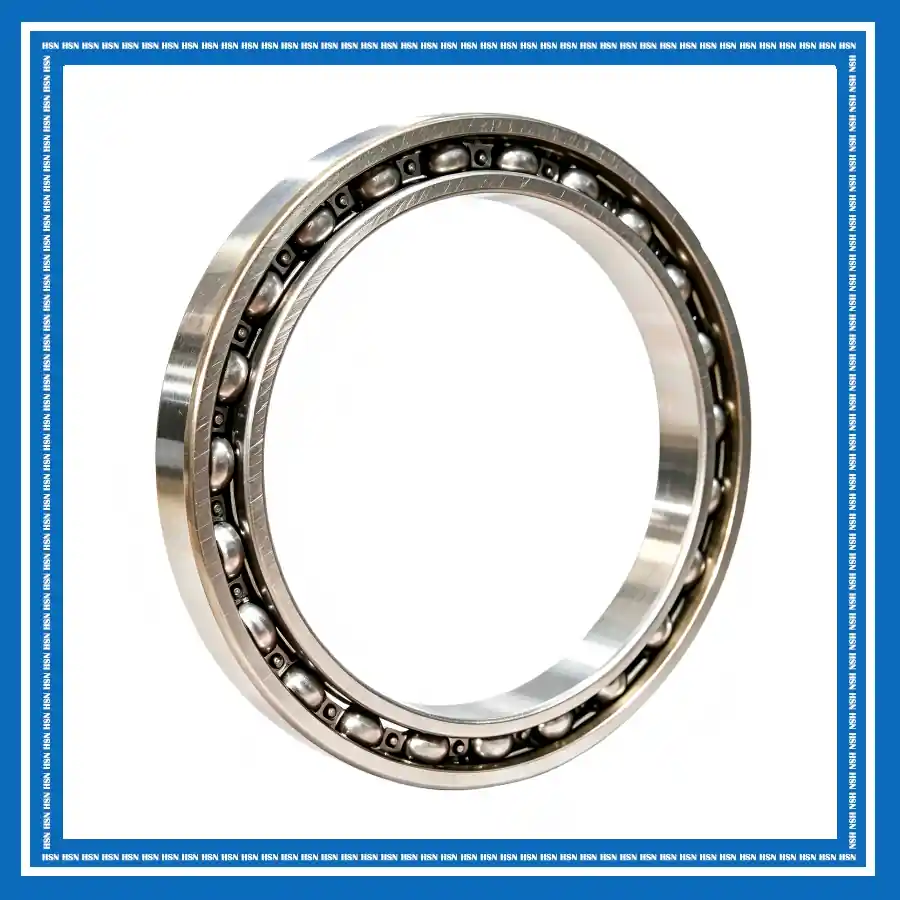

The 61804 Timken thin-section deep groove ball bearing consists of an inner ring, an outer ring, balls, and a cage, with a thin radial cross section for compact installations. The deep raceway design provides low friction, smooth operation, and high-speed performance while supporting radial loads and axial loads in both directions. Its lightweight and space-saving design provides reliable performance where installation space is limited.
The 61804 bearing is widely used in electric motors, precision instruments, robotics, machine tools, pumps, automation equipment, and other compact machinery. It is particularly suitable for applications requiring limited installation space, low friction, high-speed operation, and reliable continuous performance.
