61805-2RS
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 61805-2RS
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 25 mm
Outer (D): 37 mm
Width (B): 7 mm
Weight: 0.020 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 4300 N
Static Radial Load Rating (C0): 2900 N
Limiting Speed – Oil: 18000 rpm
Limiting Speed – Grease: 21000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Deep Groove Ball Bearings
Product Description

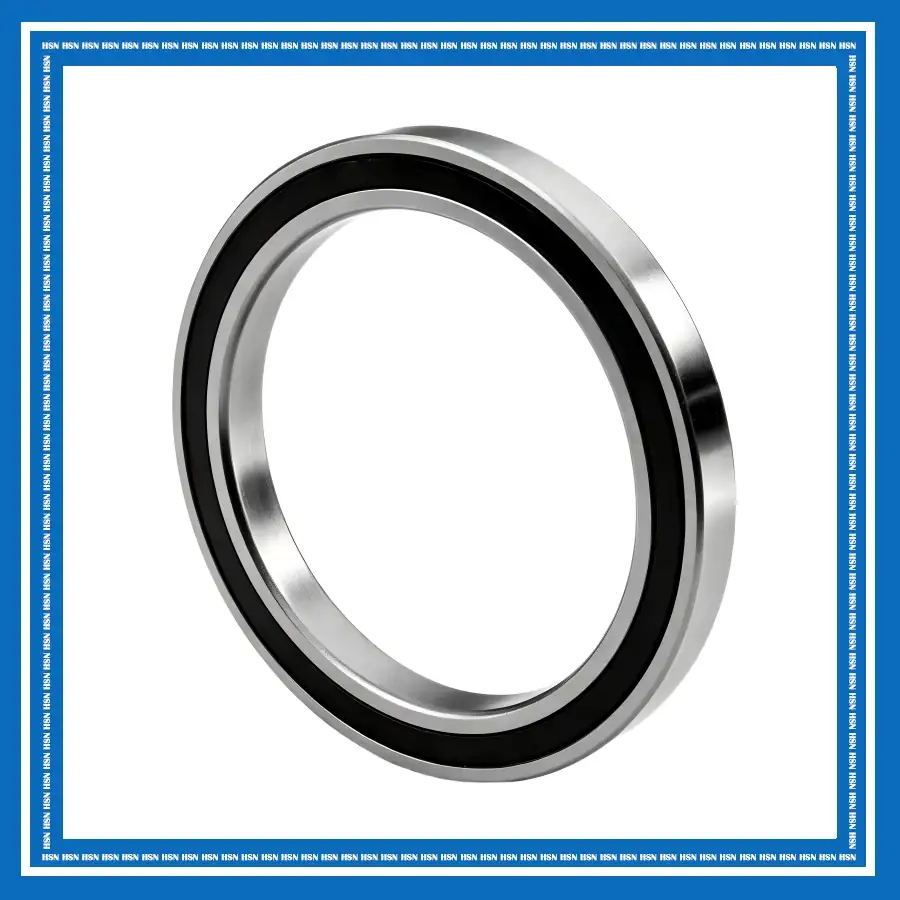

The 61805-2RS Timken thin-section deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and two contact seals. Its thin radial cross section provides a compact and lightweight design, while the contact seals help protect against dust, moisture, and contaminants and retain lubricant. It supports radial and bidirectional axial loads with reliable performance in demanding environments.
The 61805-2RS bearing is widely used in automation equipment, agricultural machinery, conveyors, pumps, food processing equipment, and compact industrial machinery. It is particularly suitable for applications requiring limited installation space, effective sealing, lubricant retention, and reliable contamination protection.
