629-C
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 629-C
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 9 mm
Outer (D): 26 mm
Width (B): 8 mm
Weight: 0.019 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 5000 N
Basic Static Load Rating, Radial (C0r): 1970 N
Fatigue Load Limit, Radial (Cur): 133 N
Limiting Speed (nG): 44500 r/min
Reference Speed (nϑr): 29500 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

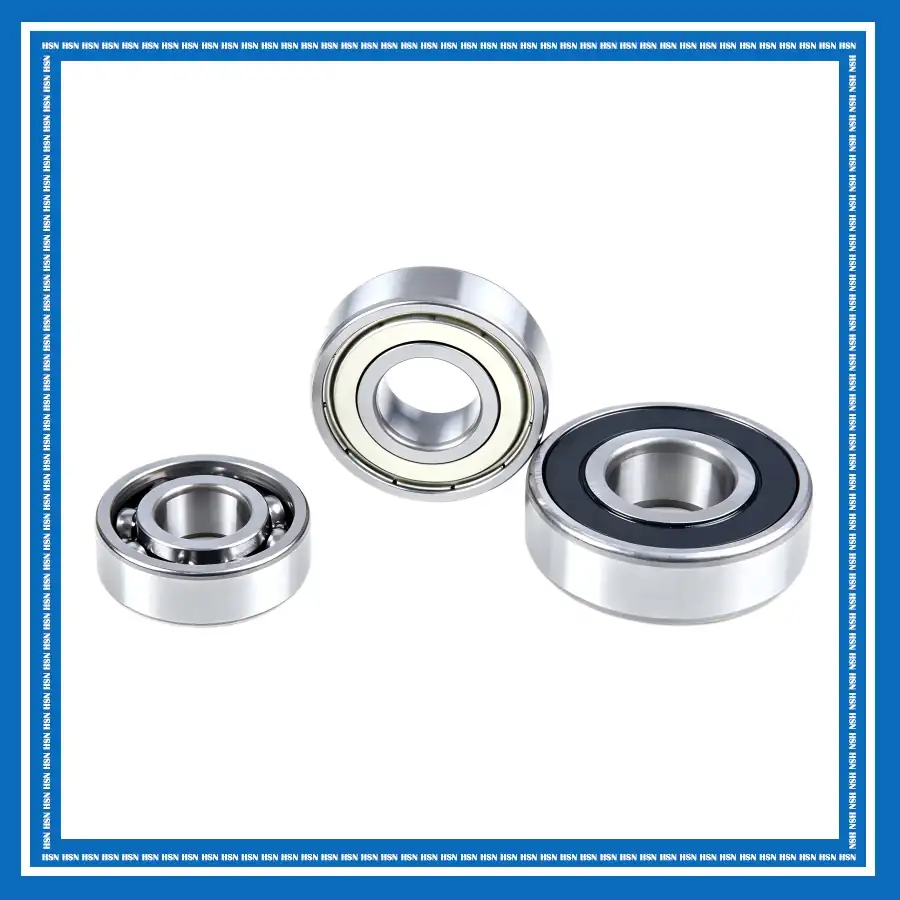

The 629-C FAG single row deep groove ball bearing consists of an inner ring, an outer ring, balls, and a cage. The deep raceway design provides low friction, smooth operation, and high-speed performance while supporting radial loads and axial loads in both directions. Its compact and robust construction offers reliable operation, low noise, and long service life under continuous working conditions.
The 629-C bearing is widely used in electric motors, pumps, fans, gear drives, machine tools, agricultural machinery, food and beverage equipment, and other industrial machinery. It is particularly suitable for applications requiring low friction, high-speed operation, reliable load support, and stable performance over long operating periods.
