SL045040-D-PP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL045040-D-PP
Category: Cylindrical Roller Bearings
1

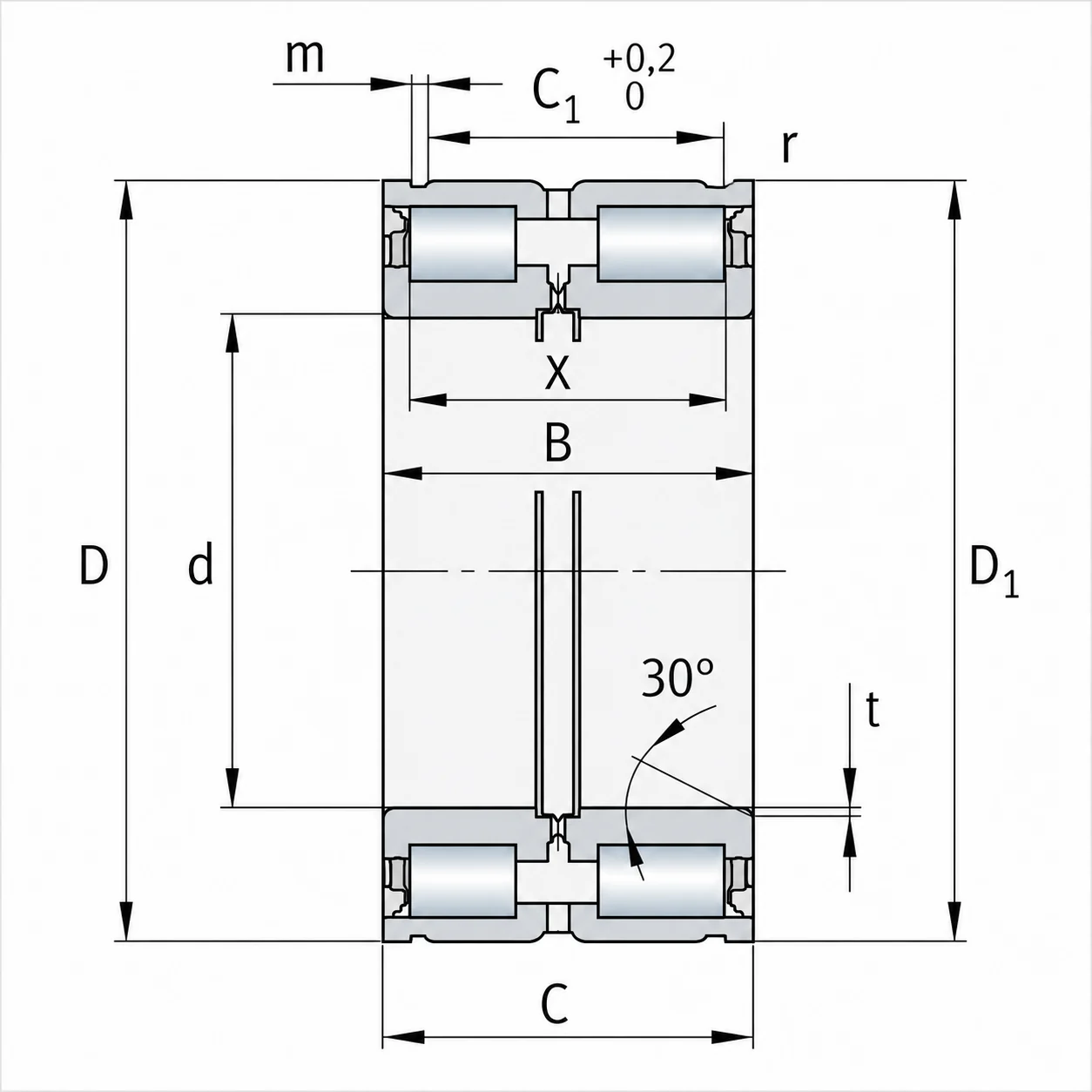

Weight and Dimensions
Bore (d): 200 mm
Outer (D): 310 mm
Width (B): 150 mm
Width, Outer Ring (C): 149 mm
Weight: 40.8 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1350000 N
Basic Static Load Rating, Radial (C0r): 2600000 N
Fatigue Load Limit, Radial (Cur): 310000 N
Limiting Speed (nG): 610 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The SL045040-D-PP double row full complement cylindrical roller bearing consists of solid inner and outer rings, two rows of cylindrical rollers, and seals on both sides. The full complement design provides very high radial load capacity and high rigidity. In addition, the D design features an optimized outer ring profile with a larger load-bearing area, while the PP seals help protect the bearing from moisture and contamination.
The SL045040-D-PP is particularly suitable for rope sheaves in cranes, hoists, lifting systems, and material handling equipment. Its annular grooves simplify axial retention in the sheave, while the sealed construction helps protect the rolling contact surfaces in exposed operating environments. The high radial capacity also supports the substantial loads transmitted through ropes and sheaves.
