SL192319-TB-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL192319-TB-XL
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 95 mm
Outer (D): 200 mm
Width (B): 67 mm
Weight: 10.2 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 650000 N
Basic Static Load Rating, Radial (C0r): 710000 N
Fatigue Load Limit, Radial (Cur): 124000 N
Limiting Speed (nG): 2240 rpm
Reference Speed (nϑr): 1620 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

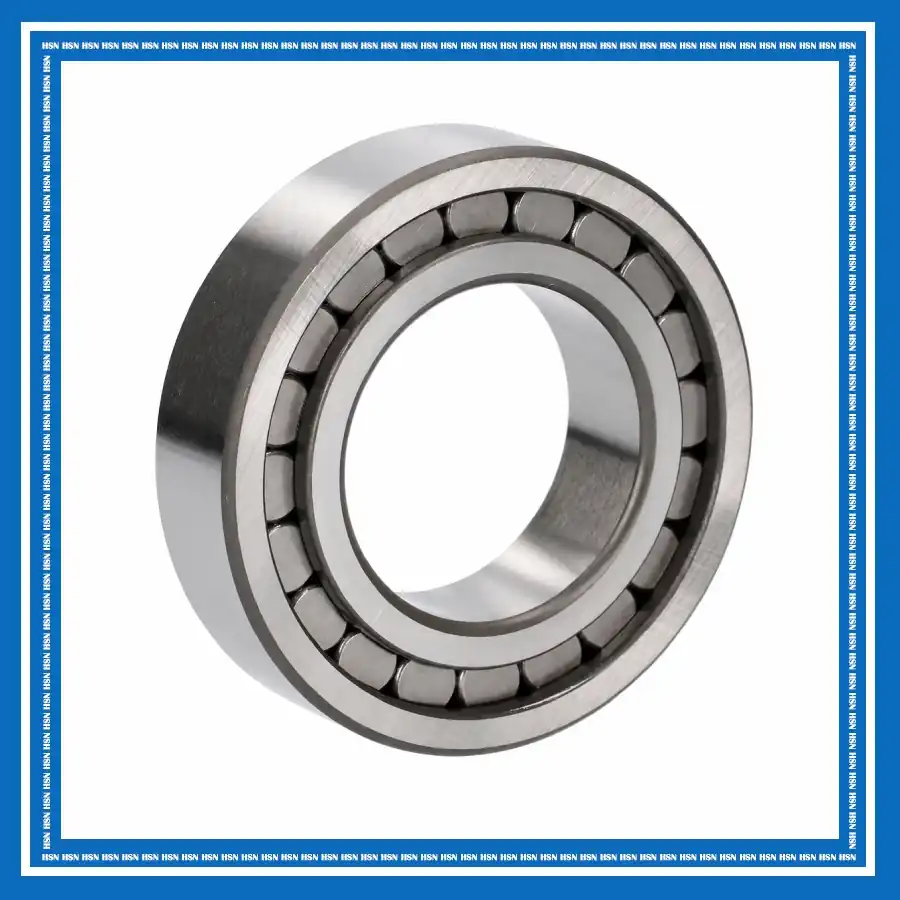

The SL192319-TB-XL FAG single row full complement cylindrical roller bearing consists of an inner ring, outer ring, and a full complement of cylindrical rollers without a cage. The full complement design provides very high radial load capacity and high rigidity. Meanwhile, the TB design optimizes roller-to-rib contact, while X-life technology improves operating performance and service life.
The SL192319-TB-XL bearing is suitable for industrial gearboxes, construction machinery, lifting equipment, and heavy-duty transmission systems. Its very high radial load capacity, high rigidity, and optimized internal design provide reliable support under heavy and continuous loads, making it suitable for demanding industrial applications.
