Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 126VFTX922
Category: Tapered Roller Thrust Bearings
1

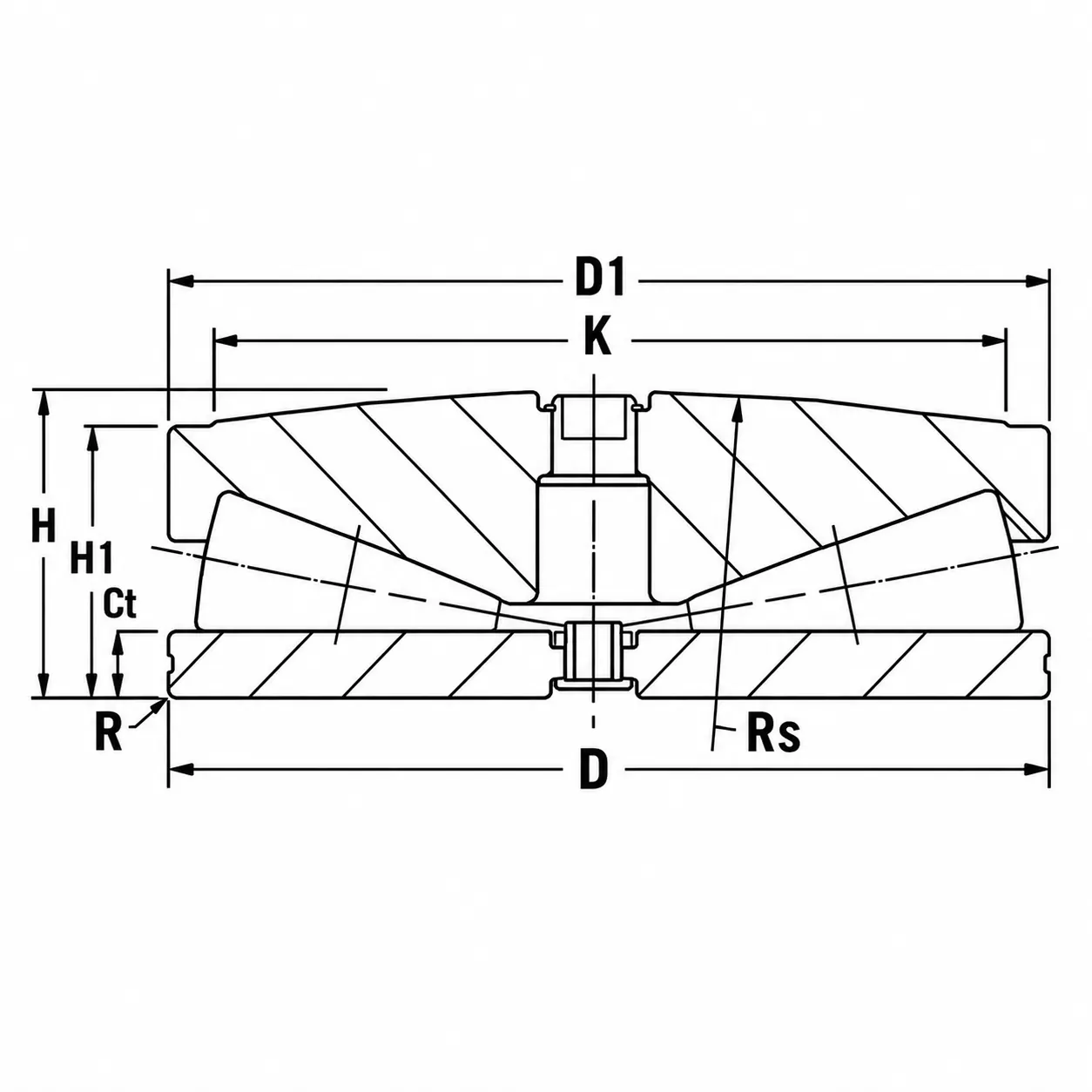

Weight and Dimensions
Screw Ext. K (K): 279.4 mm 11 in
Outer (D): 320.675 mm 12.625 in
Height (H): 110.973 mm 4.369 in
Weight: 62 kg 136 lbs
Data from ARB (medias)
Static Capacity (C0) : 6700 KN 1500000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Thrust Bearings Guide
Product Description
The ARB 126VFTX922 tapered roller thrust bearing consists of a full complement of tapered rollers, a spherical upper thrust plate, and a flat lower thrust plate. Its full complement design provides high thrust load capacity and rigidity, while the spherical seating helps accommodate initial misalignment under low-speed, heavy-load conditions. It is mainly used in the screwdown mechanisms of plate and strip rolling mills, providing reliable axial support and helping with accurate roll gap and thickness adjustment.
