23248-BE-XL-K+AH2348

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 23248-BE-XL-K+AH2348

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 240 mm

Outer (D): 440 mm

Width (B): 160 mm

Weight: 117.6 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 2850 KN

Basic Static Load Rating, Radial (C_0r): 4000 KN

Fatigue Load Limit, Radial (C_ur): 310000 N

Limiting Speed (n_G): 1500 r/min

Reference Speed (n_ϑr): 770 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

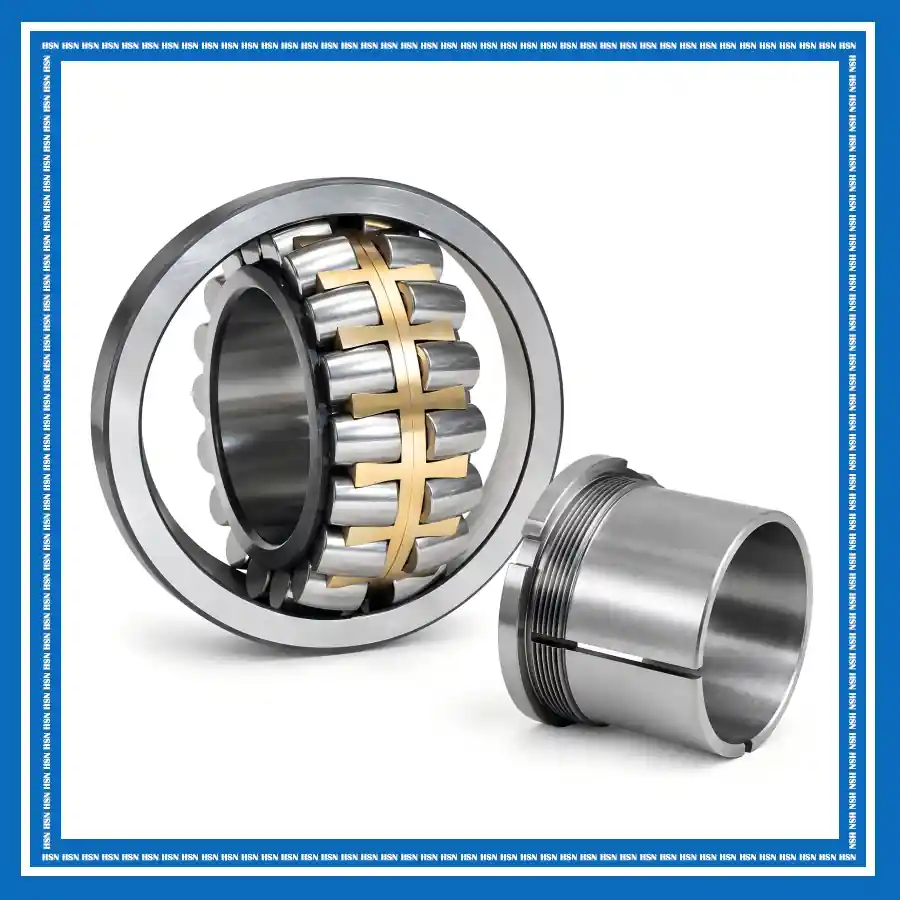

The 23248-BE-XL-K+AH2348 FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, cages, and a withdrawal sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The BE design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the K tapered bore works with the AH2348 withdrawal sleeve, allowing secure mounting on cylindrical shafts and facilitating later dismounting.

The 23248-BE-XL-K+AH2348 bearing is suitable for mining and cement, steel and metallurgy, paper machinery, material handling, industrial transmissions, and heavy industrial equipment. Its high load capacity and self-aligning capability support heavy loads, shaft deflection, and alignment deviations. Meanwhile, the withdrawal sleeve provides a practical solution for bearing mounting, dismounting, and maintenance on cylindrical shafts.
