23896 EMB

Specifications

Availability: 100 PCS

Brand: HSN/ TIMKEN/ OEM

Bearing Number: 23896 EMB

Category: Spherical Roller Bearings

1

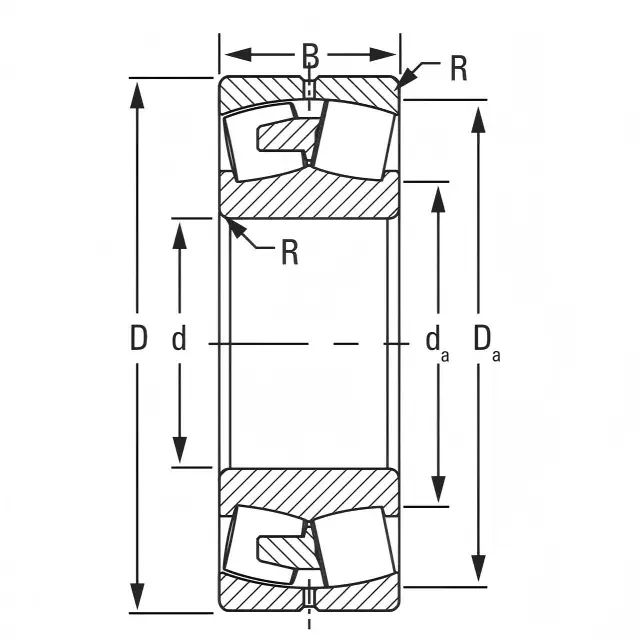

Weight and Dimensions

Bore (d): 480 mm 18.8976 in

Outer (D): 600 mm 23.622 in

Width (B): 90 mm 3.5433 in

Weight: 57 kg

Data from Timken (medias)

Dynamic Radial Load Rating (C) : 1910 KN

Static Radial Load Rating (C0): 3950 KN

Thermal Reference Speed – Oil: 340 RPM

Thermal Reference Speed – Grease: 300 RPM

Limiting Speed: 1110 RPM

e Factor: 0.13

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

Timken Spherical Roller Bearings Guide

Product Description

The 23896 EMB Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and a one-piece, inner-ring-piloted, machined-brass cage. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance machined-brass cage guided by the inner ring provides excellent strength, wear resistance, and reliable roller control, helping maintain stable operation under heavy loads, shock conditions, and demanding operating environments.

The 23896 EMB bearing is widely used in mining equipment, crushers, conveyors, gear drives, rolling mills, industrial fans, and heavy-duty machinery. It is particularly suitable for applications requiring high load capacity, precise roller guidance, misalignment compensation, and reliable performance under continuous or severe operating conditions.
