239/1060-MB1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 239/1060-MB1
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 1060 mm
Outer (D): 1400 mm
Width (B): 250 mm
Weight: 1081 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 9900 KN
Basic Static Load Rating, Radial (C0r): 26000 KN
Fatigue Load Limit, Radial (Cur): 1420000 N
Limiting Speed (nG): 420 r/min
Reference Speed (nϑr): 202 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

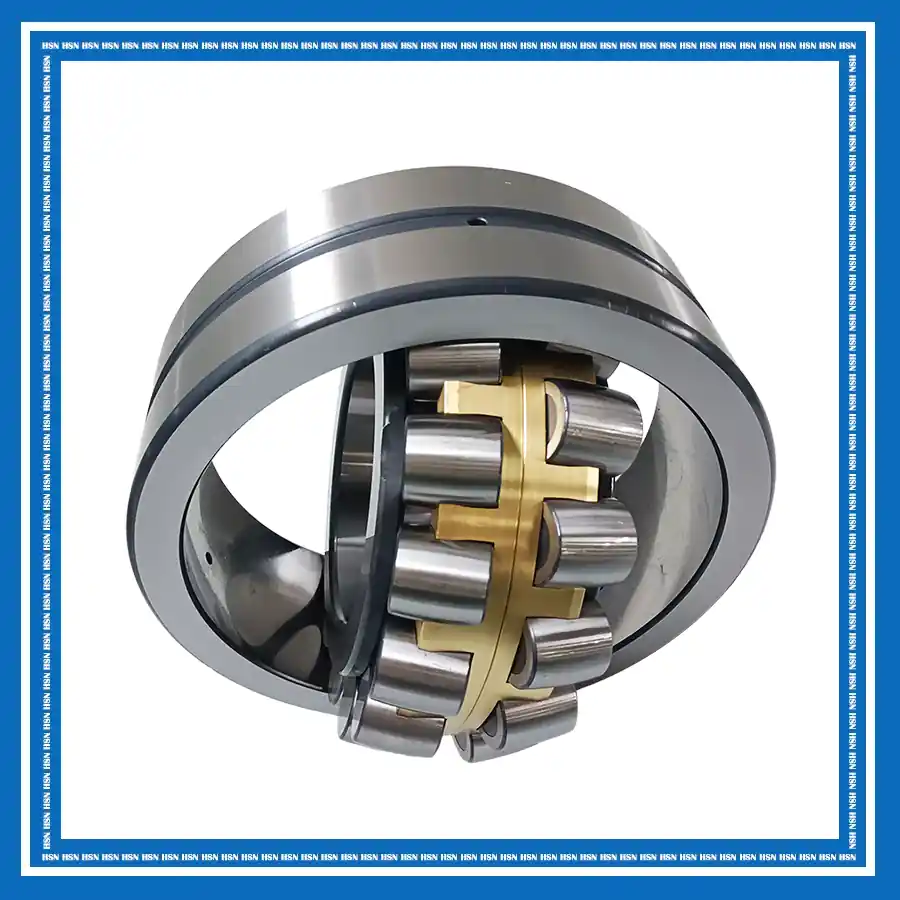

The 239/1060-MB1 FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, and a solid brass cage. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting very high radial loads and axial loads in both directions. The MB1 single-piece solid brass cage provides high strength and stable guidance, making the bearing suitable for heavy-duty operating conditions.
The 239/1060-MB1 bearing is suitable for steel and metallurgy, mining and cement, paper machinery, power generation, material handling, and heavy industrial equipment. Its very high radial load capacity, self-aligning capability, and robust brass cage provide reliable performance under heavy loads, vibration, shaft deflection, and alignment deviations.
