23972-K-MB+AH3972G-H

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 23972-K-MB+AH3972G-H

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 360 mm

Outer (D): 480 mm

Width (B): 90 mm

Weight: 58 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 1440 KN

Basic Static Load Rating, Radial (C_0r): 3200 KN

Fatigue Load Limit, Radial (C_ur): 210000 N

Limiting Speed (n_G): 1540 r/min

Reference Speed (n_ϑr): 800 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

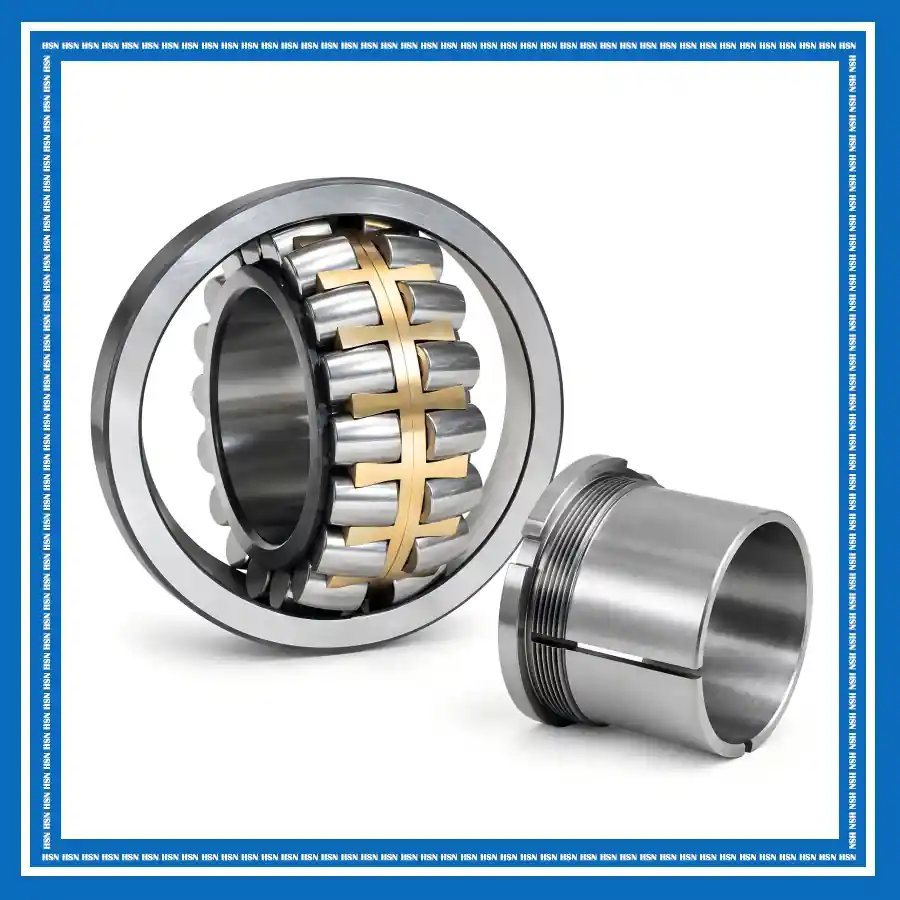

The 23972-K-MB+AH3972G-H FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, a solid brass cage, and a withdrawal sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The MB solid brass cage provides robust roller guidance and high rigidity. In addition, the K tapered bore works with the AH3972G-H withdrawal sleeve, allowing secure mounting on cylindrical shafts and facilitating later dismounting.

The 23972-K-MB+AH3972G-H bearing is suitable for paper machinery, steel and metallurgy, industrial transmissions, mining and cement, material handling, and heavy industrial equipment. Its high load capacity, self-aligning capability, and robust brass cage support heavy loads, shaft deflection, and alignment deviations. Meanwhile, the withdrawal sleeve provides a practical solution for bearing mounting, dismounting, and maintenance on cylindrical shafts.
