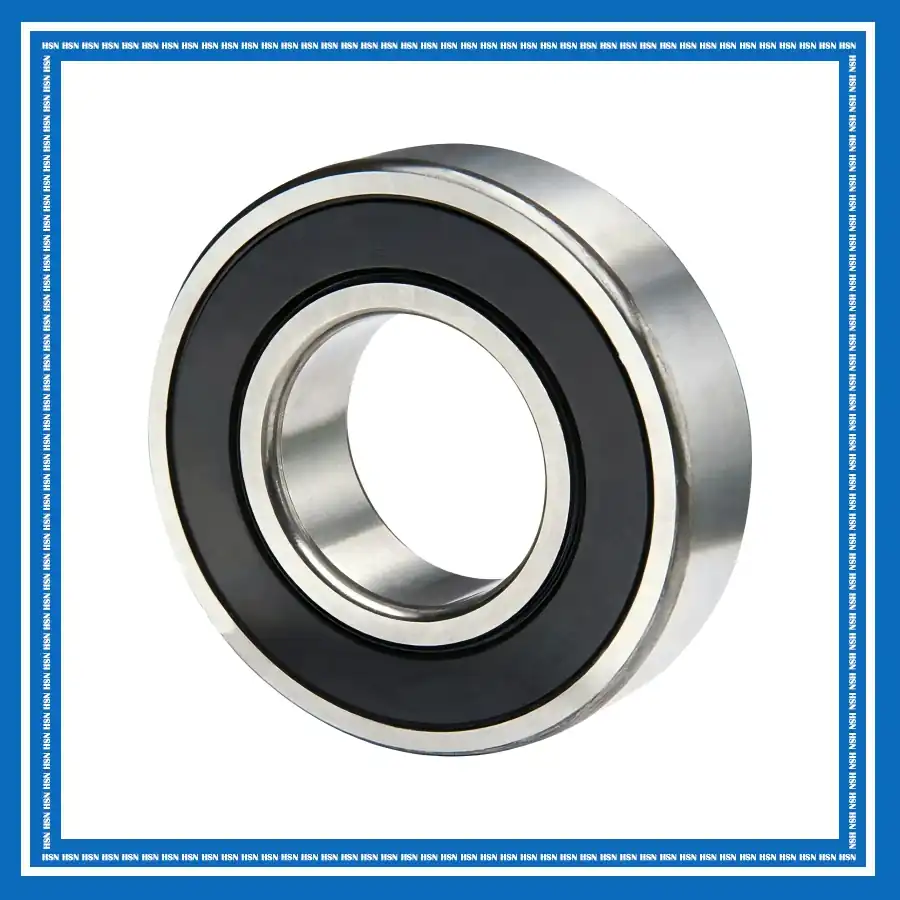

24024-BE-XL-2VSR

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 24024-BE-XL-2VSR

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 120 mm

Outer (D): 180 mm

Width (B): 60 mm

Weight: 5.6 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 450 KN

Basic Static Load Rating, Radial (C_0r): 690 KN

Fatigue Load Limit, Radial (C_ur): 84000 N

Limiting Speed (n_G): 860 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

The 24024-BE-XL-2VSR FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, cages, and seals on both sides. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The BE design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the 2VSR sealing system on both sides helps retain lubricant and protect the bearing interior from contaminants, supporting reliable operation in harsh environments.

The 24024-BE-XL-2VSR bearing is suitable for mining and cement, steel and metallurgy, material handling, construction machinery, industrial transmissions, and heavy industrial equipment. Its high load capacity and self-aligning capability support heavy loads and alignment deviations. Meanwhile, the sealed design helps reduce lubricant loss and contamination, making it suitable for applications requiring effective sealing protection and reduced maintenance.
