241/500-BEA-XL-K30-MB1+AH241/500-H

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 241/500-BEA-XL-K30-MB1+AH241/500-H

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 500 mm

Outer (D): 830 mm

Width (B): 325 mm

Weight: 750.8 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 10000 KN

Basic Static Load Rating, Radial (C_0r): 17300 KN

Fatigue Load Limit, Radial (C_ur): 1160000 N

Limiting Speed (n_G): 600 r/min

Reference Speed (n_ϑr): 209 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

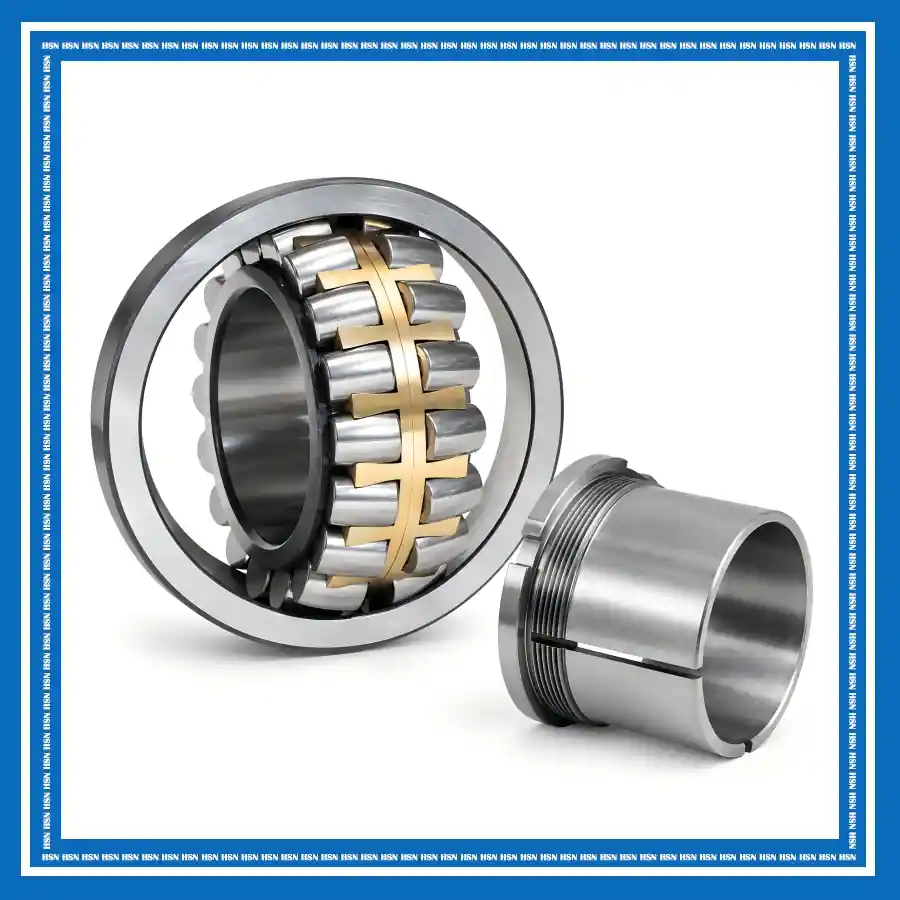

The 241/500-BEA-XL-K30-MB1+AH241/500-H FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, a solid brass cage, and a withdrawal sleeve. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The BEA design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the MB1 single-piece solid brass cage provides robust roller guidance. The K30 tapered bore has a 1:30 taper and works with the AH241/500-H withdrawal sleeve, allowing secure mounting on cylindrical shafts and facilitating later dismounting.

The 241/500-BEA-XL-K30-MB1+AH241/500-H bearing is suitable for mining and cement, steel and metallurgy, paper machinery, material handling, power generation, and heavy industrial equipment. Its high load capacity, self-aligning capability, and robust brass cage support heavy loads, shaft deflection, and alignment deviations. Meanwhile, the withdrawal sleeve provides a practical solution for bearing mounting, dismounting, and maintenance on cylindrical shafts.
