29396EM
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 29396EM
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 480 mm 18.8976 in
Outer (D): 730 mm 28.7402 in
Width (B): 150 mm 5.9055 in
Cone Outside Diameter (d1): 680 mm 26.7717 in
Cup Bore (D1): 591 mm 23.2677 in
Weight: 196.5 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 4820 KN
Static Radial Load Rating (Ca0): 20000 KN
Reference Speed Rating: 440 RPM
Limiting Speed Rating: 790 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

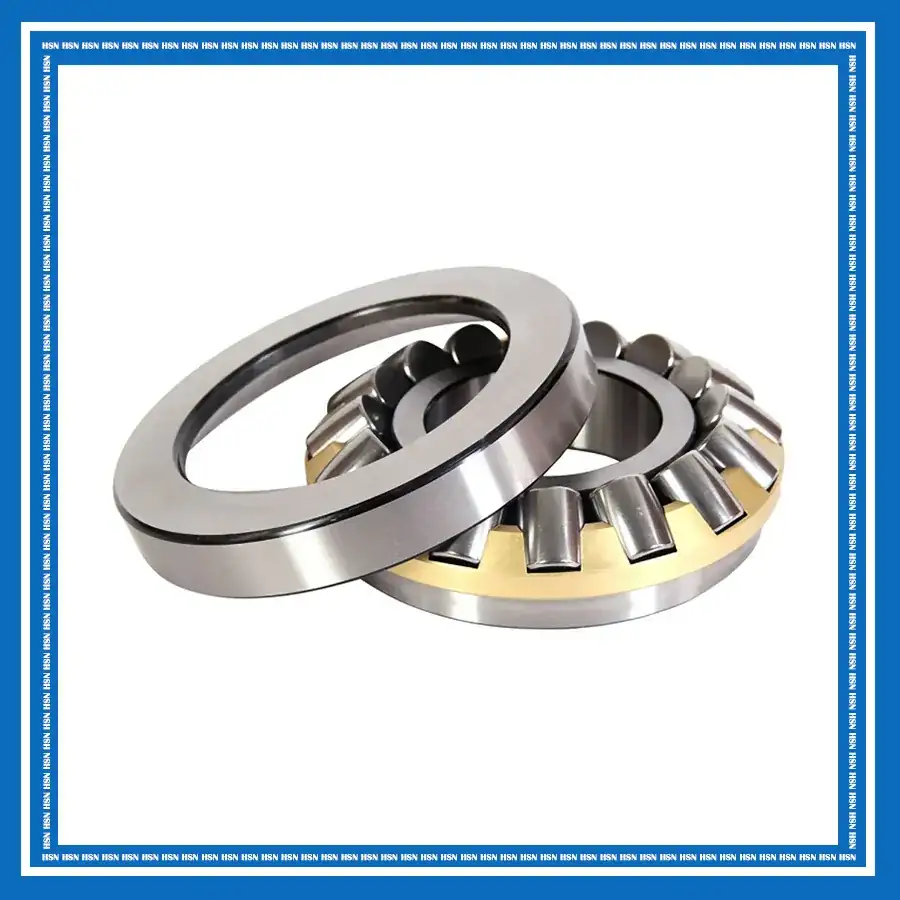

The 29396EM Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 29396EM bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
