29352EJ
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 29352EJ
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 260 mm 10.2362 in
Outer (D): 420 mm 16.5354 in
Width (B): 95 mm 3.7402 in
Cone Outside Diameter (d1): 382.2 mm 15.0472 in
Cup Bore (D1): 324 mm 12.7559 in
Weight: 46.9 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 2580 KN
Static Radial Load Rating (Ca0): 8100 KN
Reference Speed Rating: 790 RPM
Limiting Speed Rating: 1400 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

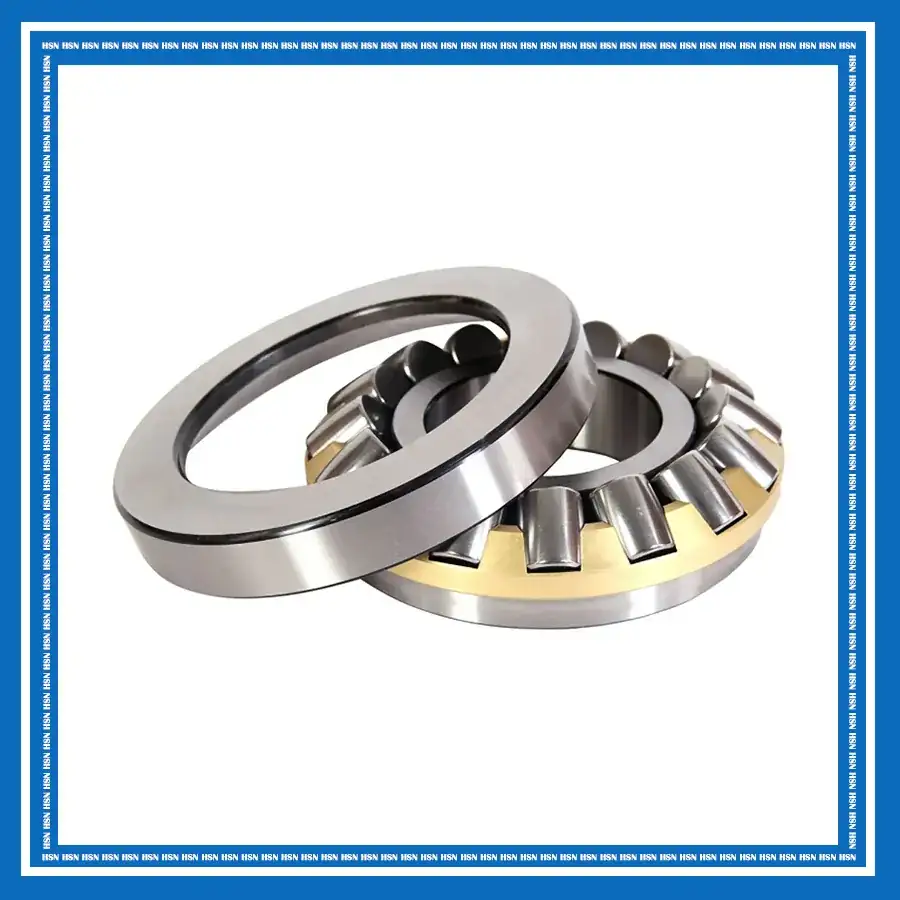

The 29352EJ Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 29352EJ bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
