294/630EM
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 294/630EM
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 630 mm 24.8031 in
Outer (D): 1090 mm 42.9134 in
Width (B): 280 mm 11.0236 in
Cone Outside Diameter (d1): 975 mm 38.3858 in
Cup Bore (D1): 780 mm 30.7087 in
Weight: 1011.5 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 15640 KN
Static Radial Load Rating (Ca0): 65910 KN
Reference Speed Rating: 240 RPM
Limiting Speed Rating: 560 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

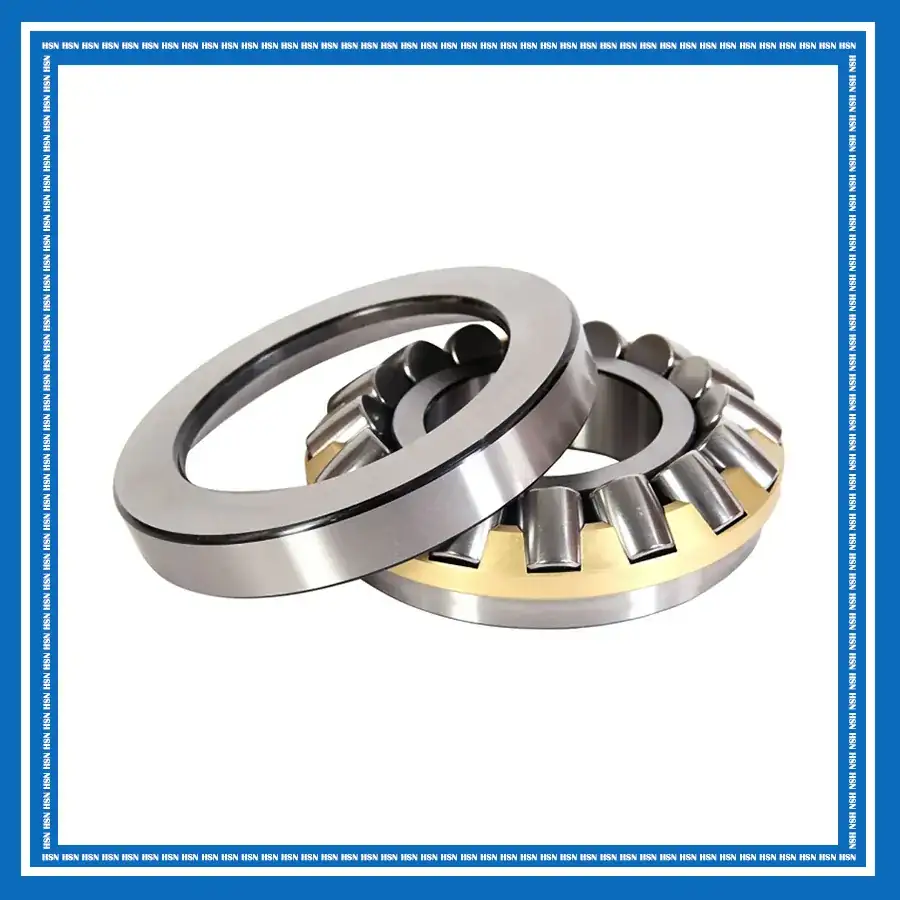

The 294/630EM Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 294/630EM bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
