29336EJ
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 29336EJ
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 180 mm 7.0866 in
Outer (D): 300 mm 11.8110 in
Width (B): 73 mm 2.8740 in
Cone Outside Diameter (d1): 270 mm 10.6299 in
Cup Bore (D1): 227 mm 8.9370 in
Weight: 18.6 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 1430 KN
Static Radial Load Rating (Ca0): 4130 KN
Reference Speed Rating: 1200 RPM
Limiting Speed Rating: 1990 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

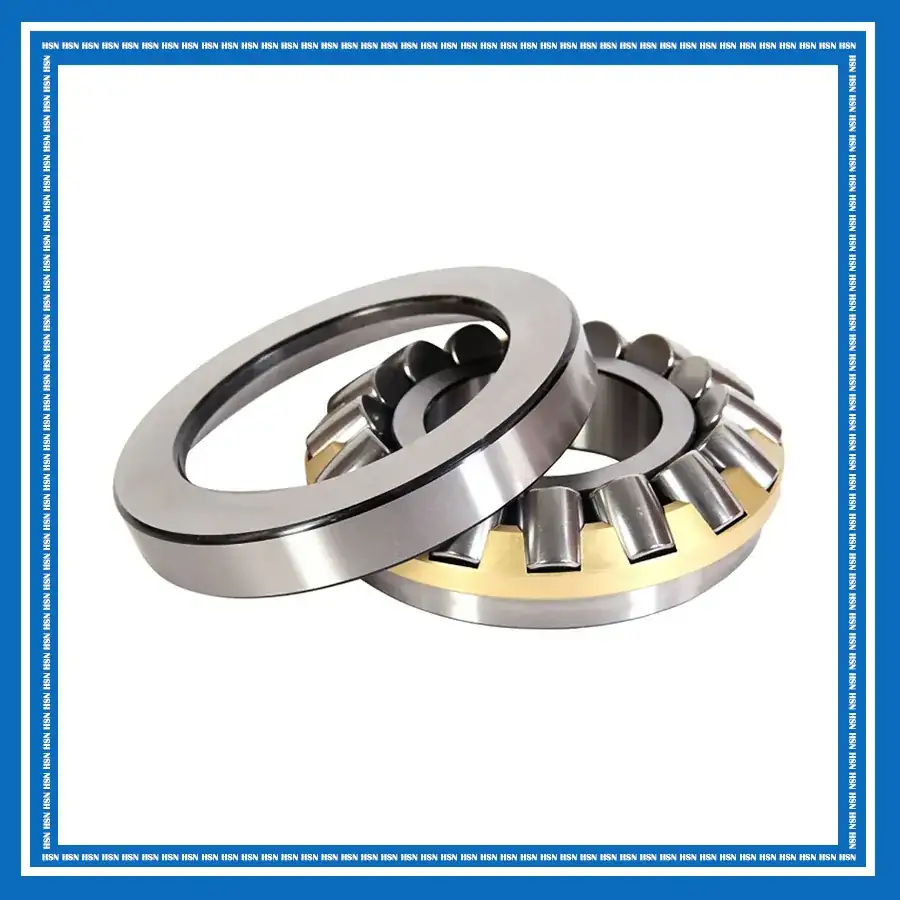

The 29336EJ Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 29336EJ bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
