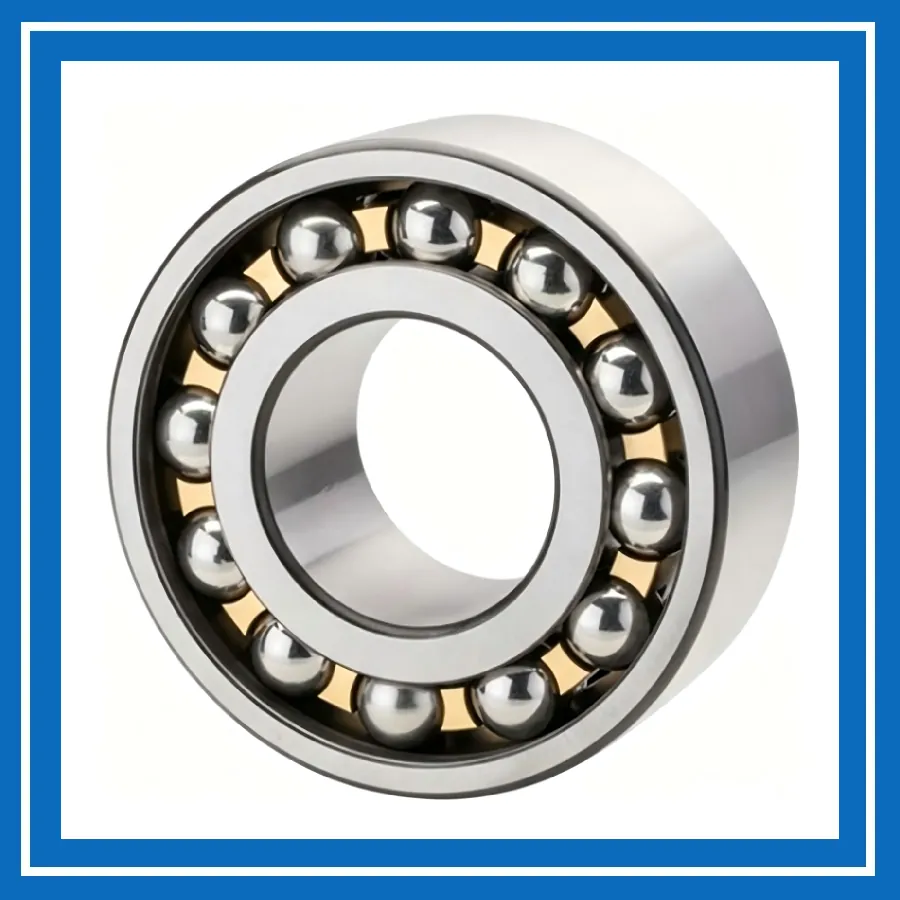

3219-M
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3219-M
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 95 mm
Outer (D): 170 mm
Width (B): 55,6 mm
Weight: 5.06 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 161000 N
Basic Static Load Rating, Radial (C0r): 193000 N
Fatigue Load Limit, Radial (Cur): 8500 N
Limiting Speed (nG): 5300 rpm
Reference Speed (nϑr): 4350 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description
The 3219-M FAG double row angular contact ball bearing consists of an inner ring, an outer ring, two rows of balls, and a ball-guided solid brass cage. The double-row design supports high radial loads and axial loads in both directions while also accommodating tilting moments. The robust M brass cage provides reliable ball guidance and stable performance under demanding operating conditions.
The 3219-M bearing is widely used in compressors, industrial pumps, elevators, conveying equipment, and heavy industrial machinery. It is particularly suitable for applications requiring high combined load capacity, rigid bearing support, and reliable operation under continuous or demanding conditions. FAG identifies pumps, conveying equipment, elevators, and compressors among typical applications for double row angular contact ball bearings.
