71807-B-TVH
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 71807-B-TVH
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 47 mm
Width (B): 7 mm
Weight: 0.029 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 6000 N
Basic Static Load Rating, Radial (C0r): 5300 N
Fatigue Load Limit, Radial (Cur): 350 N
Limiting Speed (nG): 18100 rpm
Reference Speed (nϑr): 8200 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

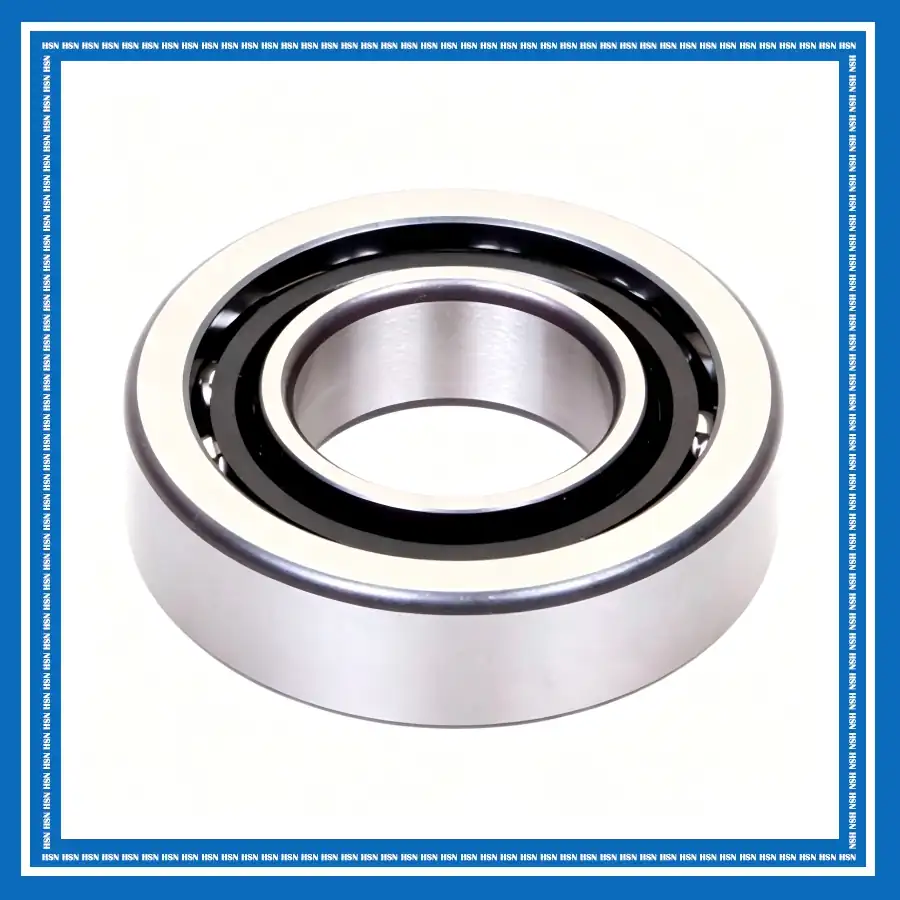

The 71807-B-TVH FAG angular contact ball bearing consists of an inner ring, an outer ring, balls, and a solid cage made from glass-fiber reinforced polyamide PA66. The 40° contact angle provides high axial load capacity while supporting combined radial and axial loads. The lightweight TVH cage provides reliable ball guidance, low friction, and smooth operation, making the bearing suitable for higher-speed applications.
The 71807-B-TVH bearing is well suited for textile machinery, printing equipment, compact drive units, precision mechanical equipment, and automation systems. Its narrow cross section is advantageous where installation space is limited, while the angular contact design provides reliable axial guidance and combined load support.
