3305-DA-TVP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3305-DA-TVP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 25 mm
Outer (D): 62 mm
Width (B): 25,4 mm
Weight: 0.341 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 30000 N
Basic Static Load Rating, Radial (C0r): 23200 N
Fatigue Load Limit, Radial (Cur): 1400 N
Limiting Speed (nG): 13100 rpm
Reference Speed (nϑr): 8400 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

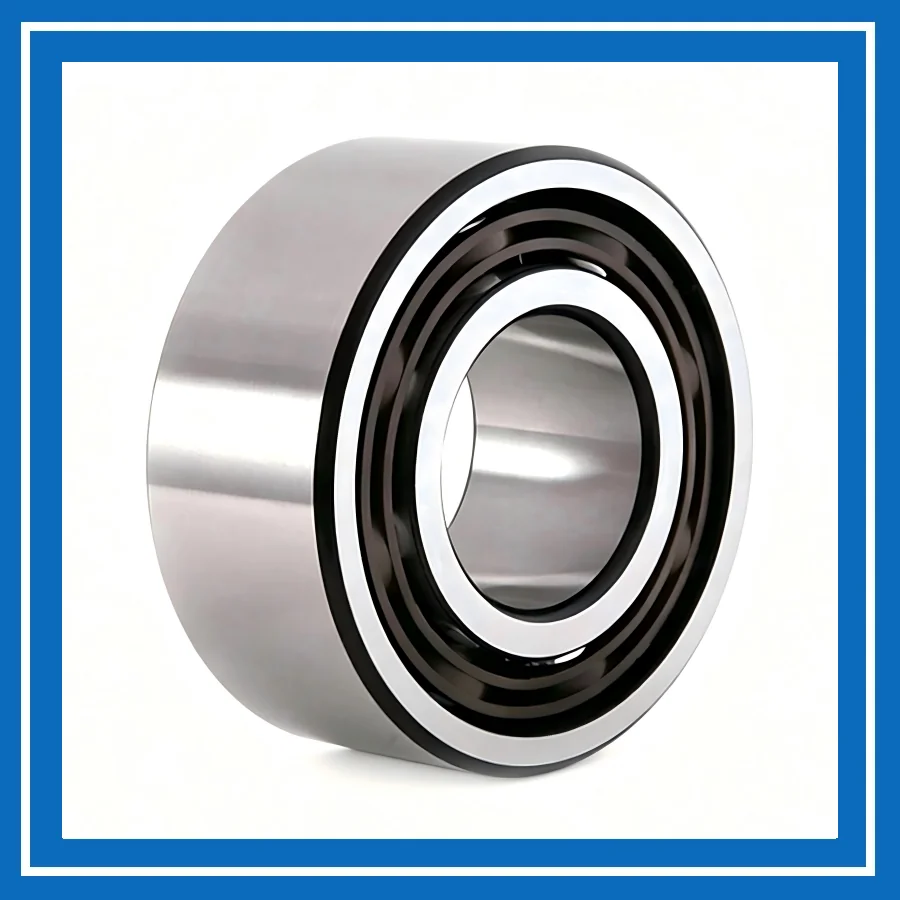

The 3305-DA-TVP FAG double row angular contact ball bearing consists of an outer ring, a split inner ring, two rows of balls, and a solid cage made from glass-fiber reinforced polyamide PA66. The 45° contact angle provides high axial load capacity in both directions while also supporting radial loads. The lightweight TVP cage provides reliable ball guidance, low friction, and smooth operation.
The 3305-DA-TVP bearing is widely used in pumps, agricultural machinery, conveying equipment, packaging machinery, and industrial drive systems. It is particularly suitable for applications requiring high bidirectional axial load capacity, combined load support, rigid axial guidance, and reliable continuous operation.
