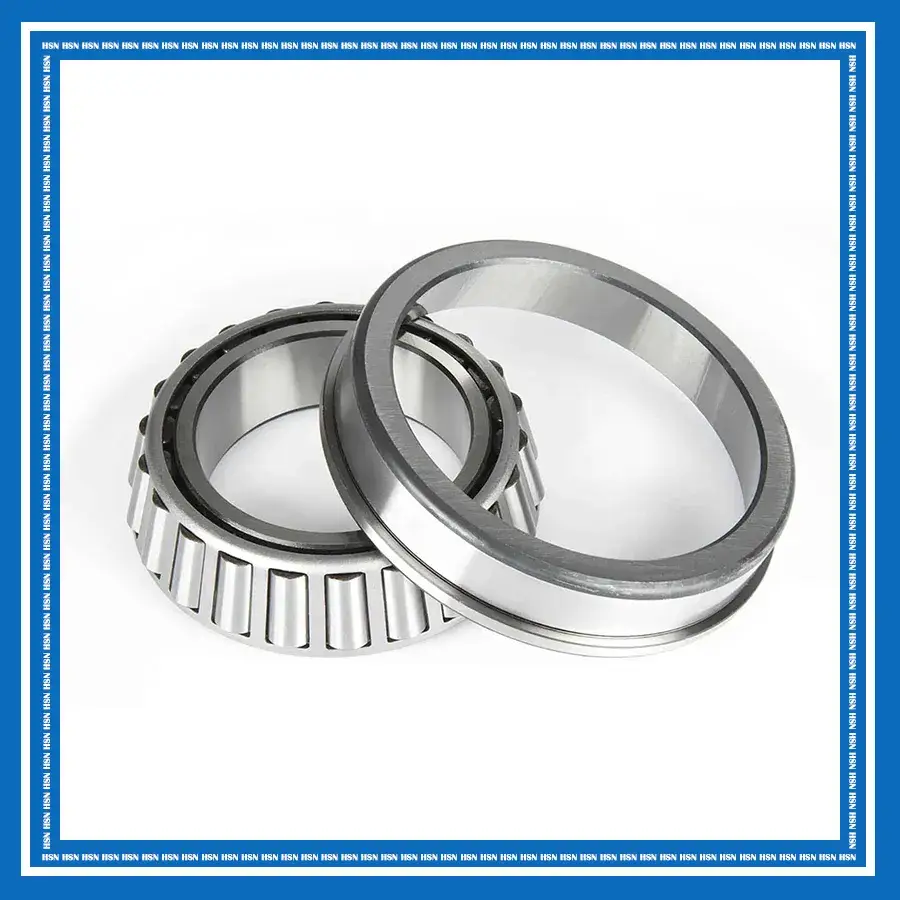

390A / 394A(395LC)
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 390A / 394A(395LC)
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 63.500 mm 2.5000 in
Outer (D): 110.000 mm 4.3307 in
Width (T): 23.218 mm 0.9141 in
Width (T1): 23.218 mm 0.9141 in
Width (B): 21.996 mm 0.8660 in
Weight: 0.84 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 98900 N
Dynamic Radial Load Rating – 90M Revs (C90) : 25600 N
Dynamic Axial Rating – 90M Revs (Ca90): 17600 N
Static Radial Load Rating (C0): 125000 N
e Factor: 0.40
K Factor: 1.45
Y Factor: 1.49
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description
The 390A / 394A(395LC) Timken TSL tapered roller bearing features a single-row tapered roller bearing design with a DUO-FACE PLUS seal pressed onto the large rib of the inner ring. The dual-lip sealing system provides effective protection against lubricant leakage and external contamination, with one seal lip operating against the housing bore and the other sealing against the hardened and ground surface of the outer-ring front face. This integrated sealing design simplifies installation and provides reliable performance for grease-lubricated applications operating at moderate speeds.
The 390A / 394A(395LC) bearing is widely used in automotive systems, industrial equipment, agricultural machinery, and other applications where reliable sealing, load support, and reduced maintenance requirements are required.
