Why Timken Tapered Roller Bearing Codes and Series Matter to Buyers?
Timken tapered roller bearings are used where radial and axial loads act together. They help support combined loads in wheel ends, gearboxes, industrial shafts, and heavy equipment.
However, a timken tapered bearing reference should not be checked by size alone. Single-row, double-row, spacer assembly, non-adjustable, and thrust designs have different ordering and installation requirements.
For buyers, the first step is to confirm whether the request is for a cone, cup, complete set, or assembly. Bearing setting, preload, fits, and lubrication should also be reviewed before ordering.
Table of contents
- What Are the Main Structural Types of Timken Tapered Roller Bearings?
- What Do the Numbers and Letters in Timken Tapered Roller Bearing Codes Mean?
- What Industries Use Timken Tapered Roller Bearings?
- What Should Buyers Confirm Before Selecting a Timken Tapered Bearing?
- How HSN Supports Timken Tapered Roller Bearing Procurement
- FAQ
- Need Help Confirming a Timken Tapered Roller Bearing Model?
What Are the Main Structural Types of Timken Tapered Roller Bearings?

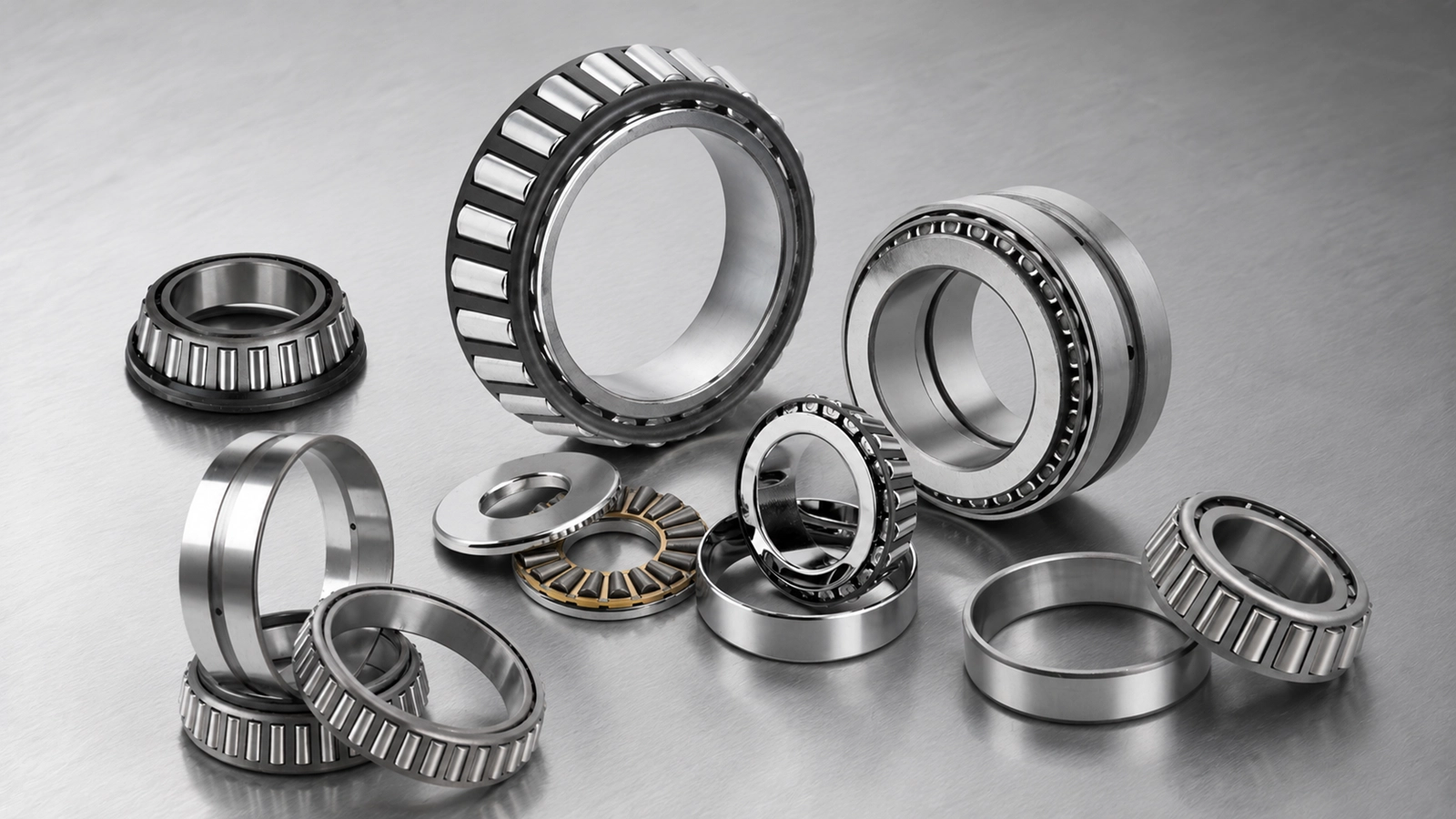

Timken tapered roller bearings are available in several structural arrangements. Buyers should identify the structure before comparing price, stock, or replacement options.
Single-Row Series
The TS type is a basic single-row design. It consists of an inner-ring assembly and an outer ring, and it is often mounted as one of an opposing pair. The TSF type is similar but uses a flanged outer ring for axial location in a through-bored housing.
Double-Row Series
Double-row structures include TDO, TDI, and TDIT designs. A TDO design uses a double outer ring with two single inner rings. A TDI design uses a double inner ring with two single outer rings. TDIT is similar to TDI but has a tapered bore for applications that require interference fit and later removal.
Non-Adjustable Series
Non-adjustable types such as TNA, TNASW, and TNASWE are supplied with a built-in setting range. These designs can simplify assembly in certain applications, but buyers still need to confirm mounting position, lubrication features, and dimensions.
Spacer Assemblies Series
Spacer assemblies use two single-row tapered roller bearings with spacers to create a pre-set arrangement. Examples include 2S, SR, 2TS-IM, and 2TS-DM structures. The direct or indirect mounting arrangement affects how the bearing set supports loads and how it fits into the equipment.
Thrust Bearing Series
Tapered roller thrust bearings are used mainly for axial load positions. They are not selected in the same way as radial tapered roller bearings. Buyers should confirm load direction, thrust capacity, alignment, and mating components before ordering.
| Structure type | Main feature | Buyer should confirm |
|---|---|---|
| TS | Basic single-row design | Cone, cup, and setting |
| TSF | Flanged outer ring | Housing and axial location |
| TDO | Double outer ring | Spacer and assembly width |
| TDI | Double inner ring | Outer ring arrangement |
| TDIT | Tapered bore | Mounting and removal |
| 2TS | Spacer assembly | Direct or indirect mounting |
| Thrust type | Mainly axial support | Load direction and mating parts |
What Do the Numbers and Letters in Timken Tapered Roller Bearing Codes Mean?
Timken tapered roller bearing codes may identify bearing family, angle group, component type, or metric size. Buyers should not apply one decoding rule to every model.
Cone and Cup Example: LM11949 / LM11910
Many inch-size tapered roller bearings use separate cone and cup numbers. In a common pair such as LM11949 / LM11910, LM11949 is often used as the cone reference, while LM11910 is the cup reference.
The letters LM indicate a light-medium duty class in ABMA-style prefix logic. The final numbers help distinguish the components. Therefore, buyers should confirm whether they need the cone only, cup only, or a complete cone-and-cup set.
ABMA Inch Example: HM522649
A number such as HM522649 can be divided for practical understanding.
| Code | Code section |
|---|---|
| HM | Series prefix |
| 5 | Angularity designator |
| 226 | Basic series indication |
| 49 | Component designator |
| — | Modification suffix letters |
COMMON PREFIX LETTERS
| Prefix | Class Designation | Prefix | Class Designation |
|---|---|---|---|
| EL | Extra light | HM | Heavy medium |
| LL | Lighter than light | H | Heavy |
| L | Light | HH | Heavier than heavy |
| LM | Light medium | EH | Extra heavy |
| M | Medium | T | Thrust only |
This code does not simply show bore, outside diameter, and width. It must be checked in the correct bearing table or against the existing part.
J-Prefix and Metric Examples
A J prefix, as in JHM522649, indicates a metric-dimensioned and toleranced component used with ABMA-style numbering logic. Therefore, HM522649 and JHM522649 should not be treated as the same product without dimension confirmation.
Metric tapered roller bearings may follow another logic. In 32218, the first digit 3 indicates tapered roller bearing type. The final 18 usually indicates a 90 mm bore because 18 × 5 = 90 mm. Some references need special attention: 30203 has a 17 mm bore under the small-bore rule, while 329/28 uses /28 to indicate a 28 mm bore.
What Industries Use Timken Tapered Roller Bearings?
Timken tapered roller bearings are used in many industries because they support combined radial and axial loads. In automotive wheel ends and axles, they help support vehicle weight, braking loads, cornering loads, and road impact.
Gearboxes and transmissions use tapered roller bearings to support shafts and maintain gear positioning under gear-meshing forces. Construction and mining equipment often operates under shock, dust, vibration, and heavy loads, so bearing structure, sealing, and lubrication should be checked carefully.
Industrial machinery such as conveyors, pumps, crushers, and drive systems may use tapered roller bearings when shaft stability and combined-load support are required. Heavy transport and railway-related equipment also require stable support under high loads and repeated vibration.
What Should Buyers Confirm Before Selecting a Timken Tapered Bearing?
Before ordering, buyers should prepare clear technical information. This reduces the risk of wrong component supply and improves quotation efficiency.
| Confirmation item | Why it matters |
|---|---|
| Cone and cup numbers | Confirms whether components are complete |
| Structure type | Affects mounting and load support |
| Endplay or preload | BInfluences heat, noise, and wear |
| Fits and dimensions | Controls installation accuracy |
| Lubrication | Affects service life |
Buyers should also prepare the complete model number, load direction, speed, temperature, quantity, delivery requirement, and photos, drawings, or samples if the original model is unclear.
How HSN Supports Timken Tapered Roller Bearing Procurement
HSN Bearing Group supports overseas B2B buyers with tapered roller bearing sourcing, model confirmation, and replacement discussion. When a buyer provides a Timken reference, HSN can help confirm whether the request is for a cone, cup, set, or assembly.
For stock models, HSN can check availability according to model and quantity. For difficult-to-source or non-standard requirements, HSN can discuss production or replacement options based on drawings, samples, dimensions, and working conditions.
Before shipment, HSN can arrange inspection according to order requirements, including dimensions, hardness, clearance, appearance, packaging, and other agreed checks.
FAQ
Are a cone and cup always sold together?
Not always. Some references relate to the cone, while others relate to the cup or complete set.
What is the difference between TDO and TDI bearings?
TDO uses a double outer ring with two single inner rings. TDI uses a double inner ring with two single outer rings.
Can two single-row bearings replace one double-row bearing?
Not automatically. Spacer, setting, width, load direction, and housing design must be checked.
Why is bearing setting important?
Incorrect endplay or preload may increase heat, wear, noise, or early failure risk.
Need Help Confirming a Timken Tapered Roller Bearing Model?
For detailed Timken tapered roller bearing models not listed above, please contact HSN for reference confirmation and replacement supply discussion. You can also send the complete bearing model number, cone and cup references, photos, dimensions, quantity, and working conditions for review.
