629-C-2HRS
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 629-C-2HRS
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 9 mm
Outer (D): 26 mm
Width (B): 8 mm
Weight: 0.02 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 5000 N
Basic Static Load Rating, Radial (C0r): 1970 N
Fatigue Load Limit, Radial (Cur): 133 N
Limiting Speed (nG): 30000 r/min
Reference Speed (nϑr): – r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

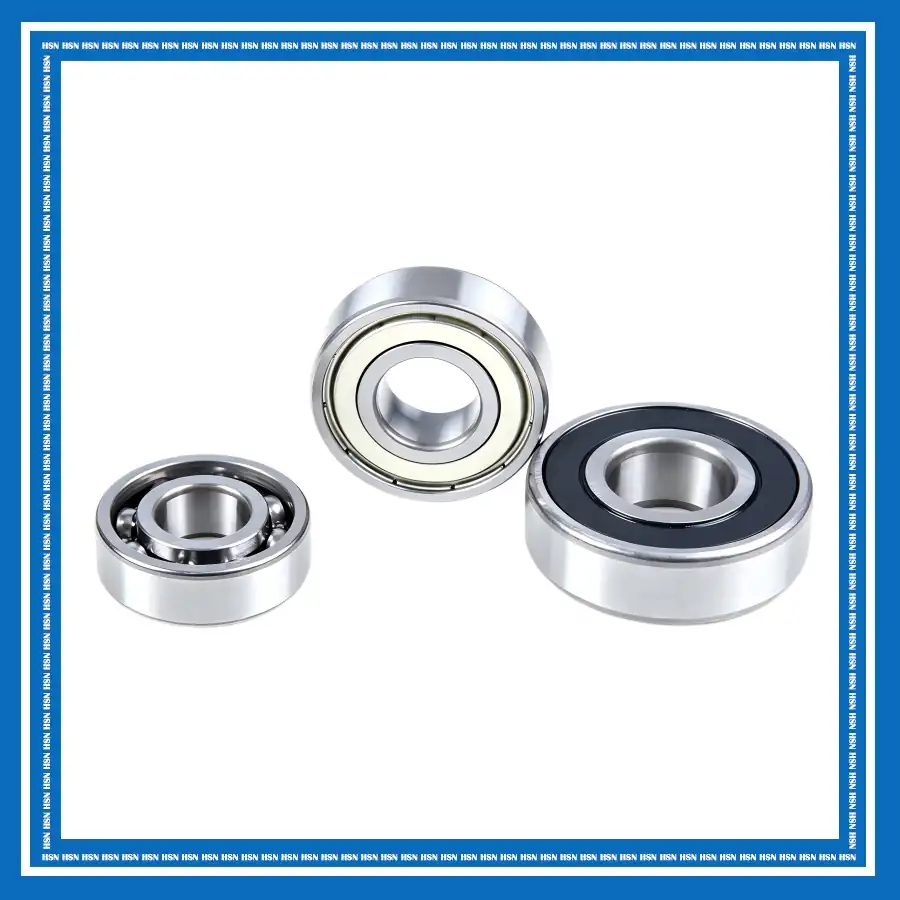

The 629-C-2HRS FAG miniature deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and contact seals on both sides. The compact design supports radial and bidirectional axial loads, while the contact seals provide reliable protection against dust, moisture, and lubricant loss. This design offers smooth operation and dependable performance in demanding environments.
The 629-C-2HRS bearing is widely used in small electric motors, miniature pumps, automation equipment, precision instruments, and compact machinery. It is particularly suitable for applications requiring limited installation space, effective sealing, lubricant retention, and reliable continuous operation.
