6301-C
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 6301-C
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 12 mm
Outer (D): 37 mm
Width (B): 12 mm
Weight: 0.062 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 10900 N
Basic Static Load Rating, Radial (C0r): 4200 N
Fatigue Load Limit, Radial (Cur): 280 N
Limiting Speed (nG): 31000 r/min
Reference Speed (nϑr): 21900 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

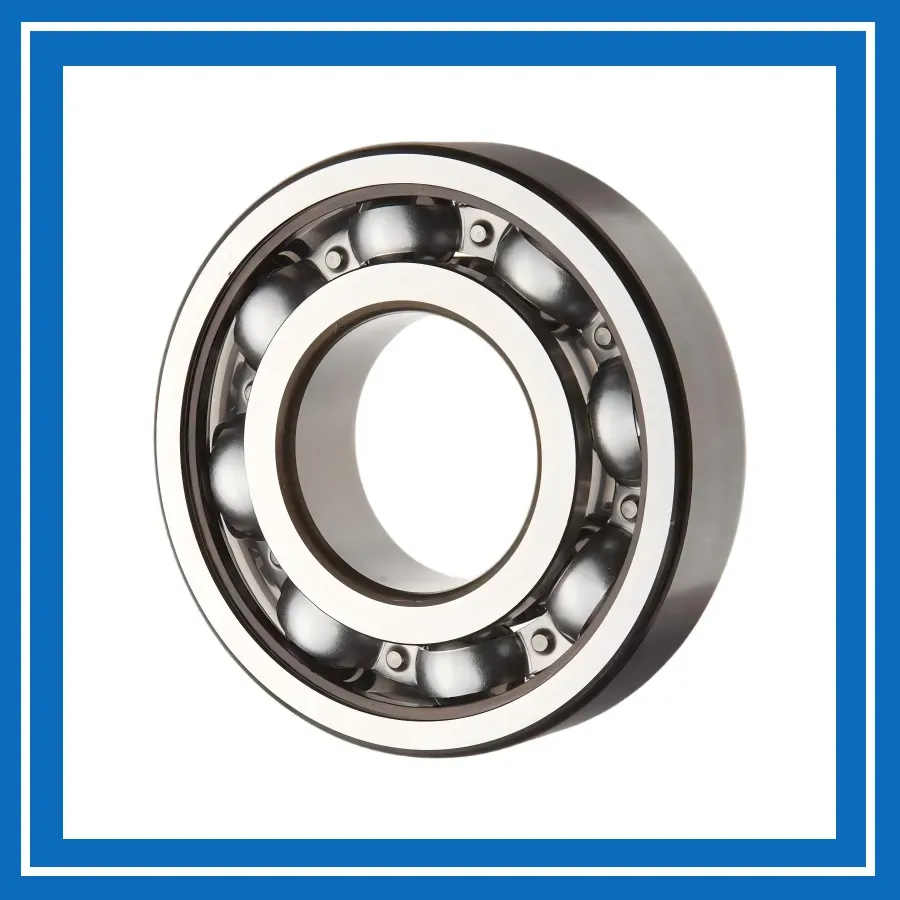

The 6301-C FAG deep groove ball bearing consists of an inner ring, an outer ring, balls, and a cage. The deep raceway design provides low friction, smooth operation, and high-speed performance while supporting radial loads and axial loads in both directions. Its simple and robust construction ensures reliable operation and low maintenance requirements.
The 6301-C bearing is widely used in electric motors, pumps, fans, gear drives, agricultural machinery, machine tools, and general industrial equipment. It is particularly suitable for applications requiring high-speed operation, low friction, low noise, and reliable continuous performance.
