6307-C-2BRS
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 6307-C-2BRS
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 80 mm
Width (B): 21 mm
Weight: 0.447 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 37000 N
Basic Static Load Rating, Radial (C0r): 19100 N
Fatigue Load Limit, Radial (Cur): 1290 N
Limiting Speed (nG): 11500 r/min
Reference Speed (nϑr): 10900 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

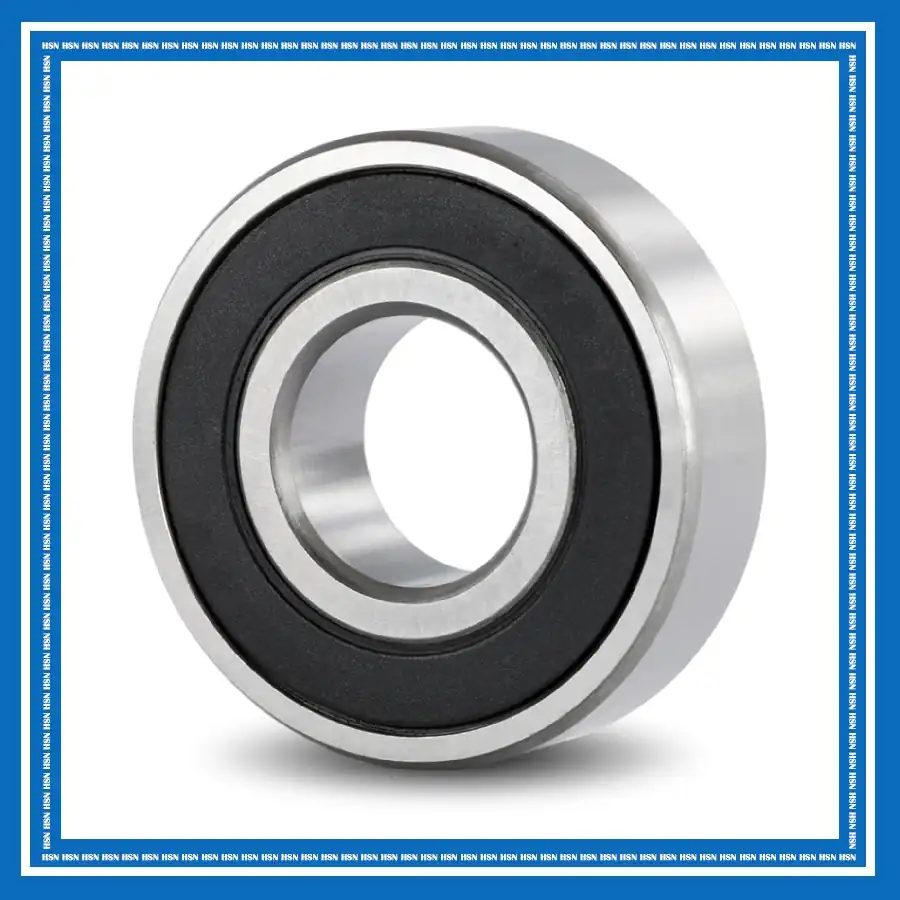

The 6307-C-2BRS FAG deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and seals on both sides. The 2BRS sealing design provides low-friction running and excellent high-speed performance while helping protect the bearing against contaminant ingress and grease loss. The deep raceway design supports radial and bidirectional axial loads, ensuring smooth and reliable operation.
The 6307-C-2BRS bearing is widely used in electric motors, fans, pumps, gear drives, conveyors, machine tools, and other industrial equipment. It is particularly suitable for applications requiring low friction, high speeds, reliable sealing, grease retention, and stable performance under continuous operating conditions.
