6313-Z
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 6313-Z
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 65 mm
Outer (D): 140 mm
Width (B): 33 mm
Weight: 2.100 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 92600 N
Static Radial Load Rating (C0): 59700 N
Limiting Speed – Oil: 6000 rpm
Limiting Speed – Grease: 8600 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Deep Groove Ball Bearings
Product Description

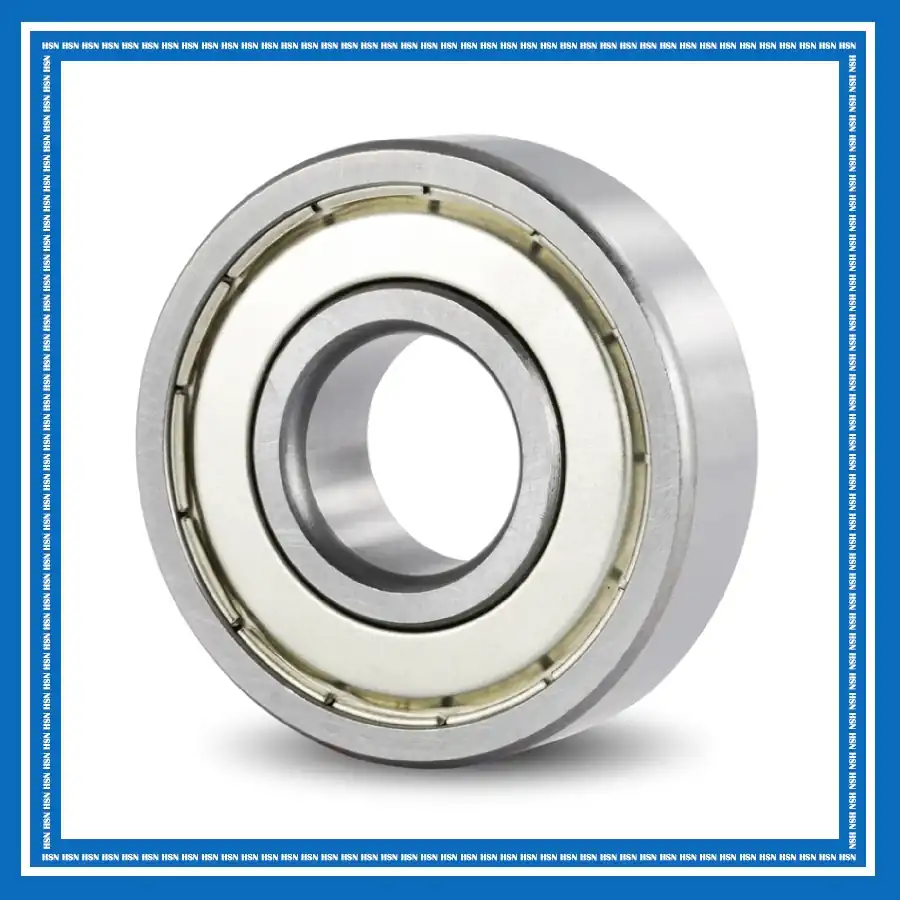

The 6313-Z Timken deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and a metal shield on one side. The deep raceway design supports radial loads and axial loads in both directions while providing low friction and high-speed performance. The single metal shield helps retain lubricant and protect the bearing against dust and contaminants.
The 6313-Z bearing is widely used in electric motors, fans, pumps, conveyors, agricultural machinery, food processing equipment, and other industrial machinery. It is particularly suitable for applications requiring high-speed operation, low friction, lubricant retention, and protection against dust and contaminants.
