AD41546DK
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: AD41546DK
Reference Number: 512340
Reference Number: 313041C
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (B): 365.000 mm 14.3701 in
Ref. bore (B1): 390.000 mm 15.3543 in
Outer (D): 540.000 mm 21.2598 in
Width (W): 300.000 mm 11.8110 in
Ref. dia (F): 421.000 mm 16.5748 in
Weight: 232 kg 511 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 5010 KN 1126000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

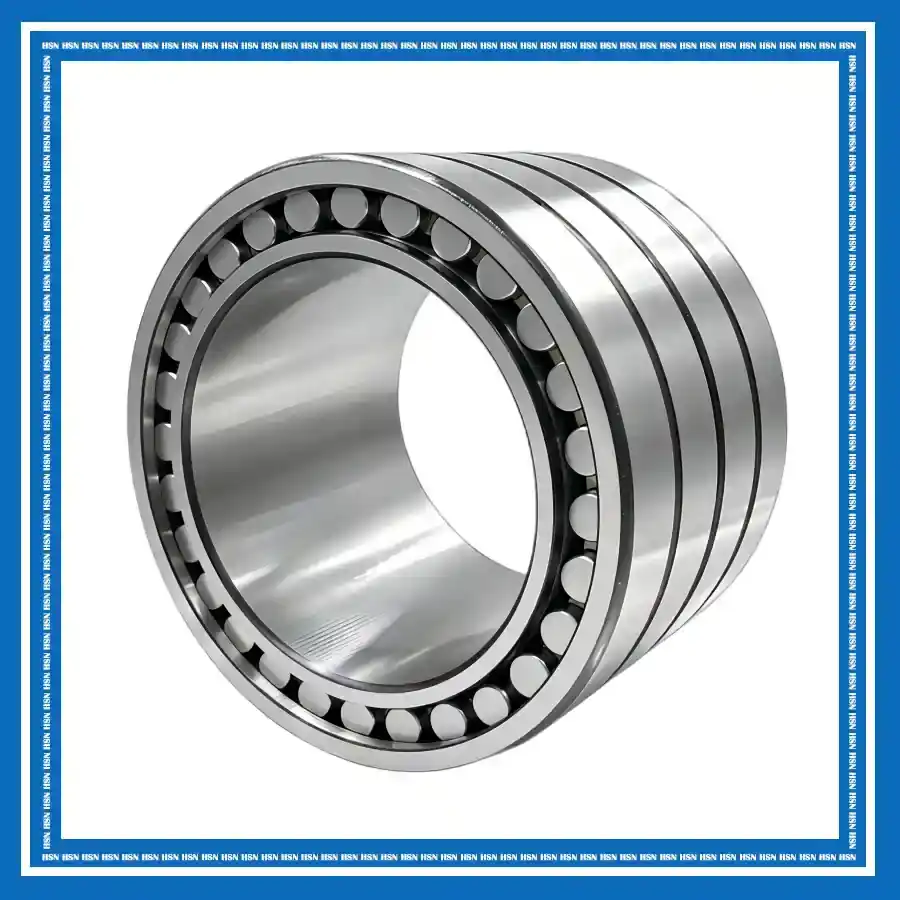

The American Roller Bearing AD41546DK four-row cylindrical roller bearing consists of inner and outer rings, four rows of cylindrical rollers, and robust cage assemblies. Its 1:12 tapered bore provides secure mounting on a matching tapered roll neck, while the four-row roller arrangement delivers high radial load capacity and rigidity under heavy loads. The precision internal design helps distribute loads evenly across the roller rows for stable and reliable operation. It is primarily designed for rolling mill applications, including work rolls and backup rolls in steel, aluminum, and other metal processing equipment requiring reliable radial support under heavy rolling loads.
