AH3044G-H
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: AH3044G-H
Category: Withdrawal Sleeves
1
Weight and Dimensions
Bore Diameter (d1): 200 mm
Thread (G): Tr230×4
Sleeve Length (B1): 111 mm
Weight: 7.18 kg
Data from Schaeffler (medias)
Bore Diameter (d): 220 mm
Bearing Overhang (a1): 6 mm
Thread Length (IG): 20 mm
Mounting Dimensions
Thread Oil Connector (G1): G1/8
Distance Oil Connector (a): 6.5 mm
Thread Depth Oil Connector (IG1): 12 mm
Product Description

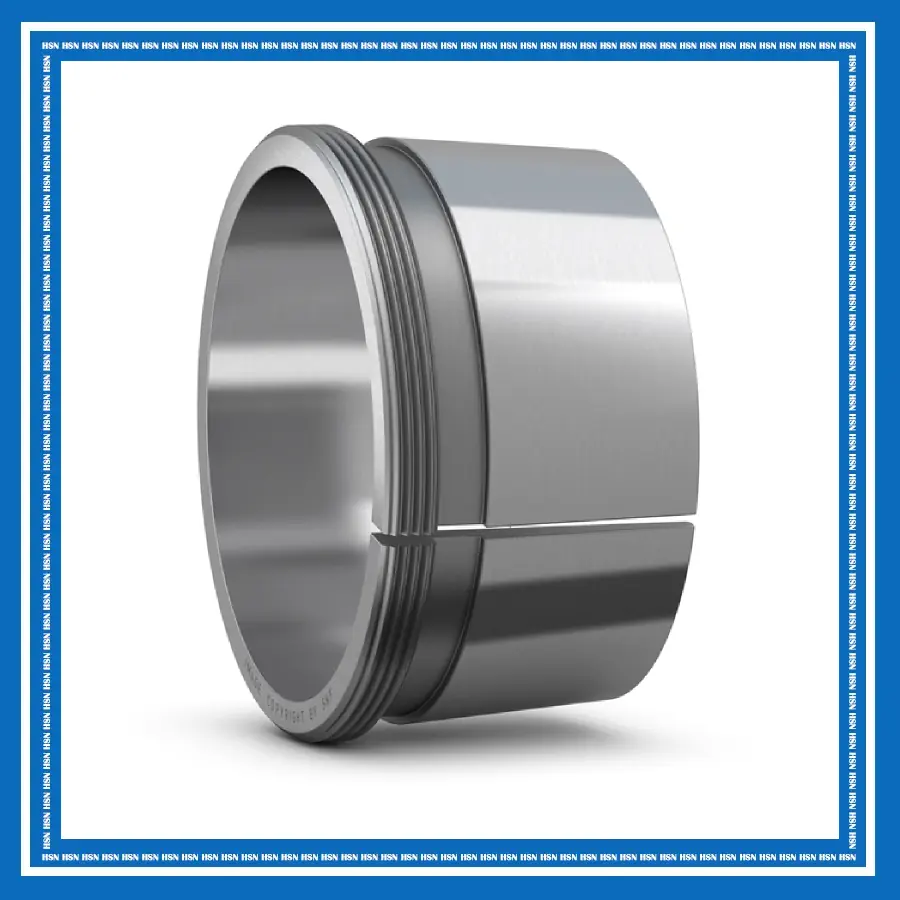

The AH3044G-H withdrawal sleeve is a precision-machined cylindrical sleeve with a tapered outside surface and a slotted design. It is used to mount bearings with tapered bores onto cylindrical shaft seats, allowing the bearing to be securely fitted and accurately positioned. Its robust steel construction provides high strength and dimensional stability, while the withdrawal sleeve design also facilitates bearing removal during maintenance.
The AH3044G-H withdrawal sleeve is suitable for industrial gearboxes, pumps, fans, conveyors, material handling equipment, and other machinery using bearings with tapered bores. It provides a secure connection between the bearing and shaft while simplifying installation, adjustment, and disassembly in industrial bearing arrangements.
