AXK140180
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: AXK140180
Category: Axial Needle Roller and Cage Assembly
1
Weight and Dimensions
Bore Diameter Cage (Dc1): 140 mm
Outside Diameter (Dc): 180 mm
Rolling Element Diameter (Dw): 5 mm
Raceway Dimension (Ea): 177 mm
Raceway Dimension (Eb): 146 mm
Weight: 219 g
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Axial (ca): 138000 N
Basic Static Load Rating, Axial (c0a): 900000 N
Fatigue Load Limit, Axial (cua): 79000 N
Limiting Speed (nG): 1780 rpm
Reference Speed (nϑr): 700 rpm
Axial Bearing Washer: AS140180
1
Product Description

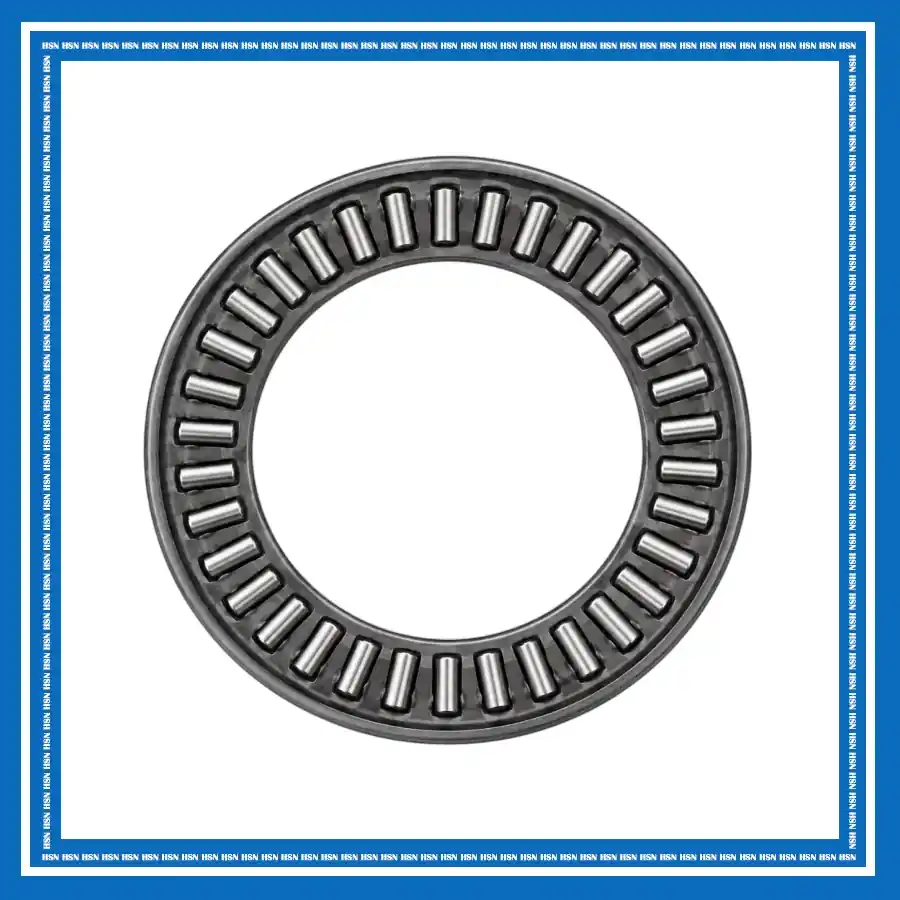

The FAG AXK140180 axial needle roller and cage assembly consists of precision needle rollers and a plastic cage that provides reliable roller guidance and spacing. Its compact design requires minimal axial installation space while providing high axial load capacity and rigidity. It can support axial loads in one direction and is suitable for gearboxes, machine tools, power tools, transmission systems, and other compact mechanical equipment where space-saving and reliable axial support are required.
