E-2267-A
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM

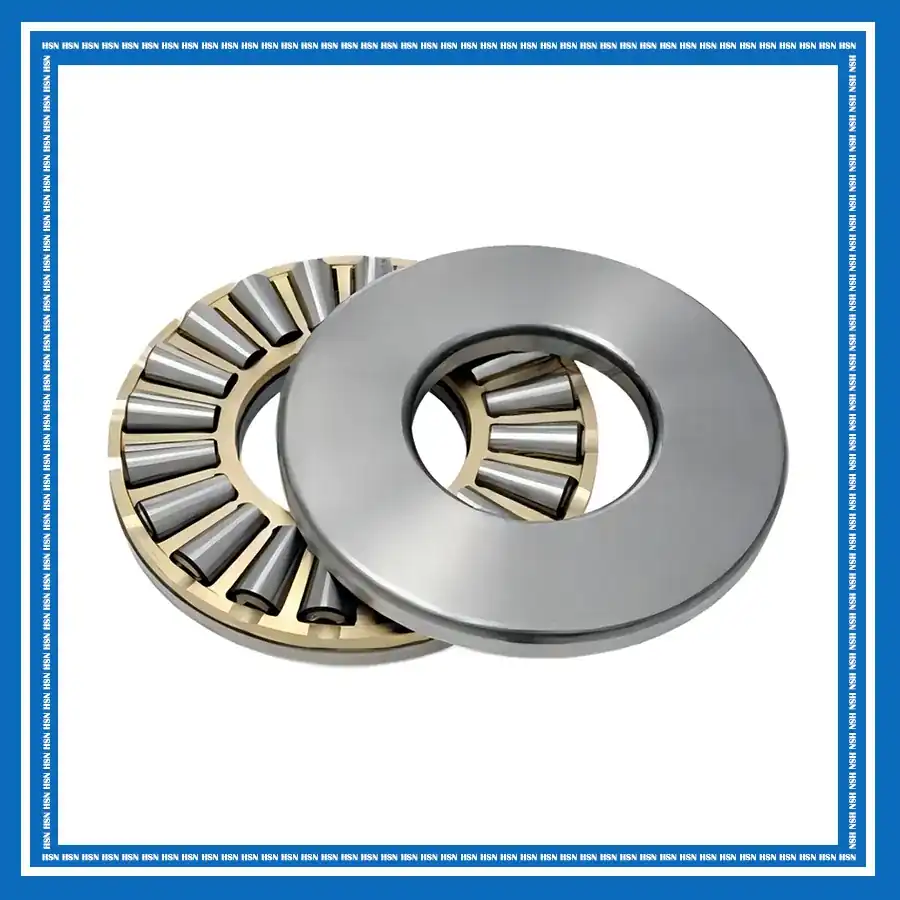

Bearing Number: E-2267-A
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 800.100 mm 31.5000 in
Outer (D): 1041.400 mm 41.0000 in
Width (T): 139.700 mm 5.5000 in
Weight: 308.10 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 2440 KN
Static Radial Load Rating (Ca0): 40600 KN
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The E-2267-A Timken TTHDFL tapered roller thrust bearing consists of one tapered raceway ring, one flat ring, tapered rollers, and a cage. Most sizes use a pin-type cage that allows closer roller spacing for higher load capacity, while smaller sizes use a brass cage. Combining the advantages of tapered and cylindrical roller thrust bearings, this design provides high axial load capacity within a compact space. It is mainly used in rolling mill screwdown applications requiring reliable support under heavy axial loads.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
