NN41/670
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NN41/670
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 670 mm 26.3780 in
Outer Diameter (D): 1090 mm 42.9134 in
Width (W): 412 mm 16.2205 in
Weight: 1500 kg 3307 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 12100 KN 2720300 lbs
Static Capacity (Co) : 25500 KN 5732700 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

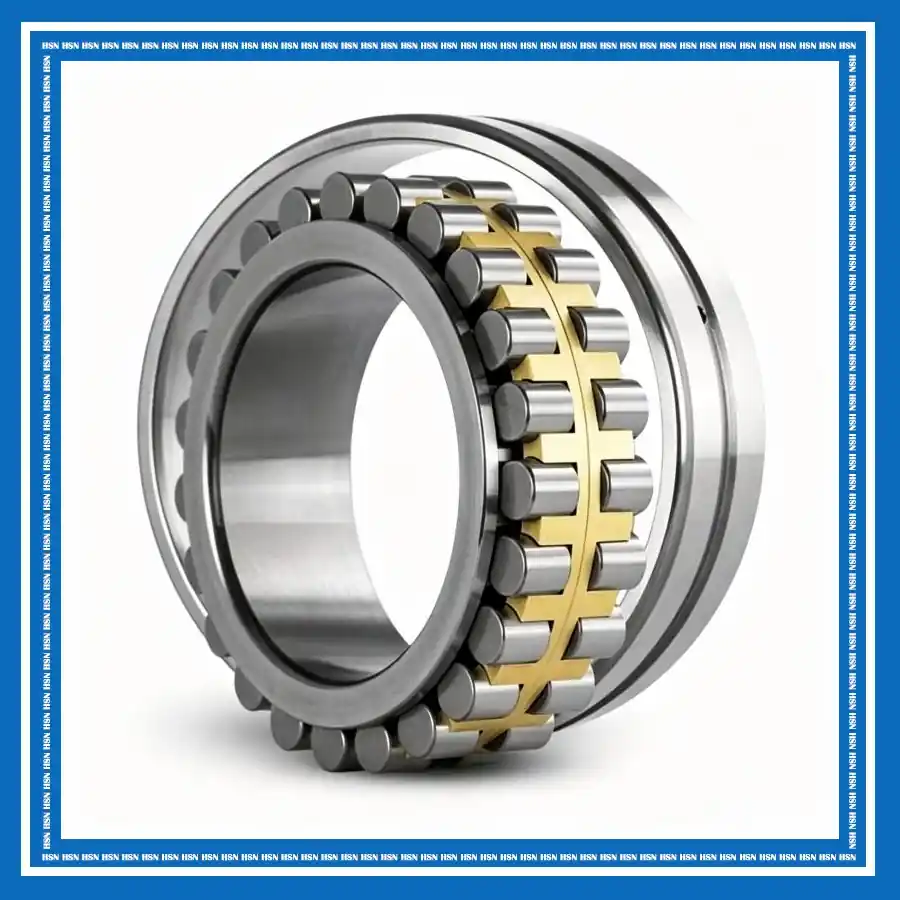

The American Roller Bearing NN41/670 double-row cylindrical roller bearing consists of an inner ring, a separable outer ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row roller arrangement provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable outer ring facilitates mounting and maintenance, while the robust cage and roller arrangement provide smooth and stable performance under demanding loads. It is suitable for lathes, machine tools, industrial gearboxes, pinion stands, rolling mill equipment, and other heavy-duty rotating machinery requiring high radial load capacity, rigidity, and reliable shaft support.
