Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NN4184
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 420 mm 16.5354 in
Outer Diameter (D): 700 mm 27.5591 in
Width (W): 280 mm 11.0236 in
Weight: 440 kg 970 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 5500 KN 1236500 lbs
Static Capacity (Co) : 11400 KN 2562900 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

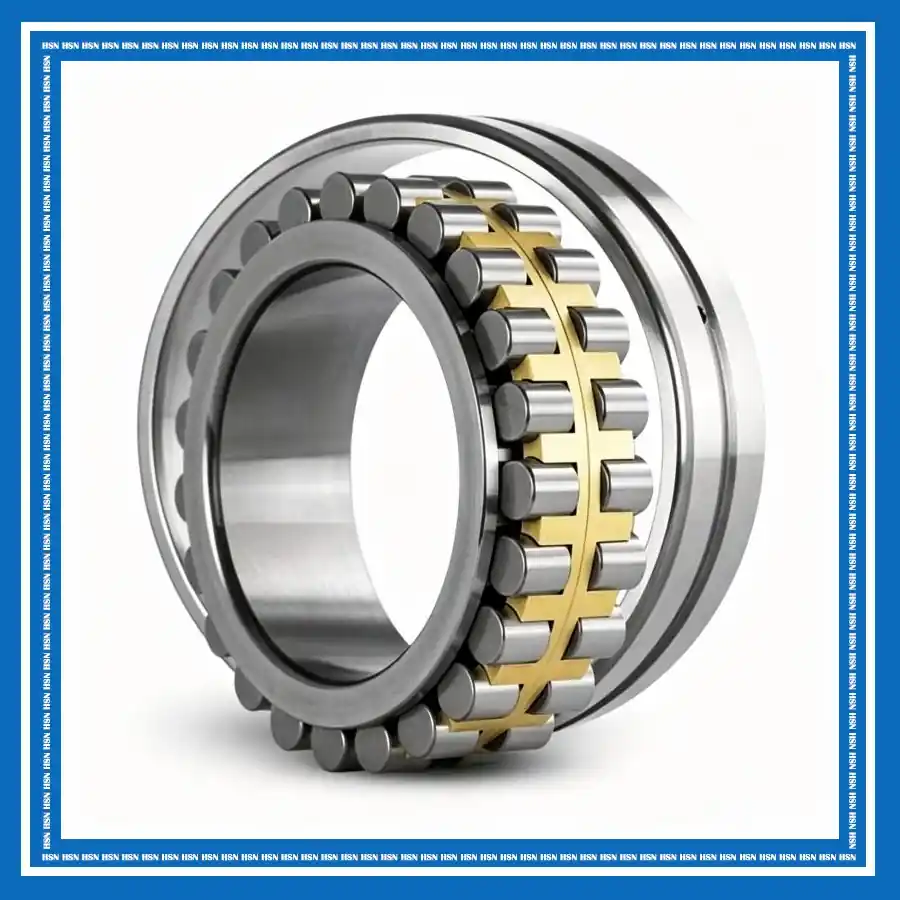

The American Roller Bearing NN4184 double-row cylindrical roller bearing consists of an inner ring, a separable outer ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row roller arrangement provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable outer ring facilitates mounting and maintenance, while the robust cage and roller arrangement provide smooth and stable performance under demanding loads. It is suitable for lathes, machine tools, industrial gearboxes, pinion stands, rolling mill equipment, and other heavy-duty rotating machinery requiring high radial load capacity, rigidity, and reliable shaft support.
