NNU49/500
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNU49/500
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 500 mm 19.6850 in
Outer Diameter (D): 670 mm 26.3780 in
Width (W): 170 mm 6.6929 in
Weight: 165 kg 364 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 2330 KN 523900 lbs
Static Capacity (Co) : 6100 KN 1371400 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

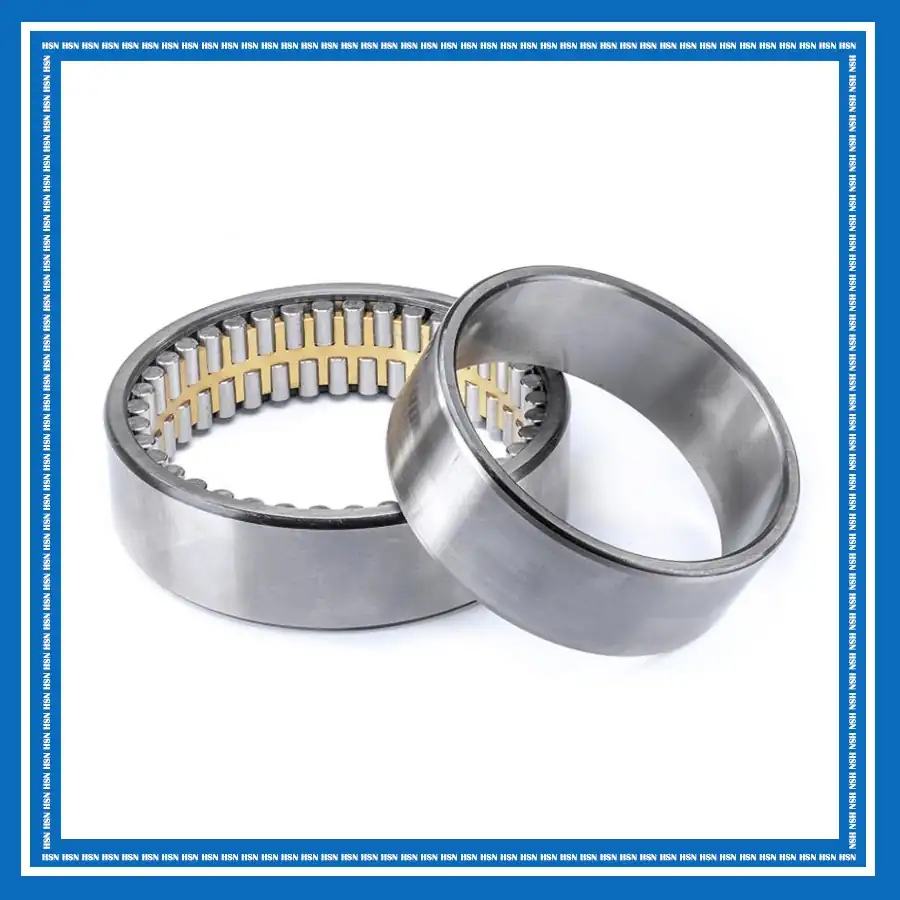

The American Roller Bearing NNU49/500 double-row cylindrical roller bearing consists of an outer ring, a separable inner ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row design provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance, while the robust cage and roller arrangement ensure stable performance under demanding loads. It is suitable for machine tool spindles, industrial gearboxes, pinion stands, rolling mill equipment, printing machinery, and other heavy-duty rotating equipment requiring high radial load capacity, rigidity, and reliable shaft support.
