NU2226-E-XL-TVP2
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: NU2226-E-XL-TVP2
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 130 mm
Outer (D): 230 mm
Width (B): 64 mm
Weight: 10.4 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 620000 N
Basic Static Load Rating, Radial (C0r): 730000 N
Fatigue Load Limit, Radial (Cur): 119000 N
Limiting Speed (nG): 3500 rpm
Reference Speed (nϑr): 2280 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

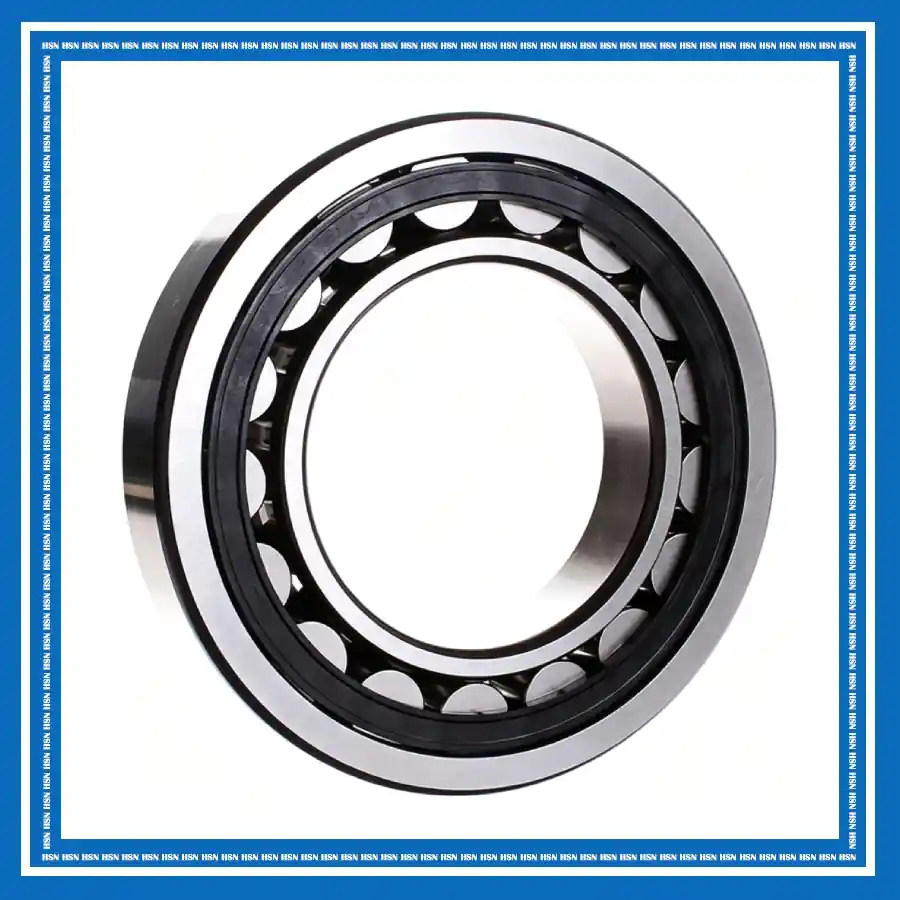

The NU2226-E-XL-TVP2 FAG single row cylindrical roller bearing consists of an outer ring with two ribs, a ribless inner ring, cylindrical rollers, and a solid window cage made from polyamide PA66. The E design provides increased radial load capacity, while X-life improves performance and service life. The lightweight TVP2 cage provides reliable roller guidance and smooth operation.
The NU2226-E-XL-TVP2 bearing is widely used in electric motors, industrial pumps, compressors, and compact drive systems. The NU design allows axial displacement within the bearing, making it suitable for non-locating arrangements that accommodate thermal shaft expansion. FAG NU cylindrical roller bearings are also used as non-locating bearings in pump and traction-motor arrangements.
