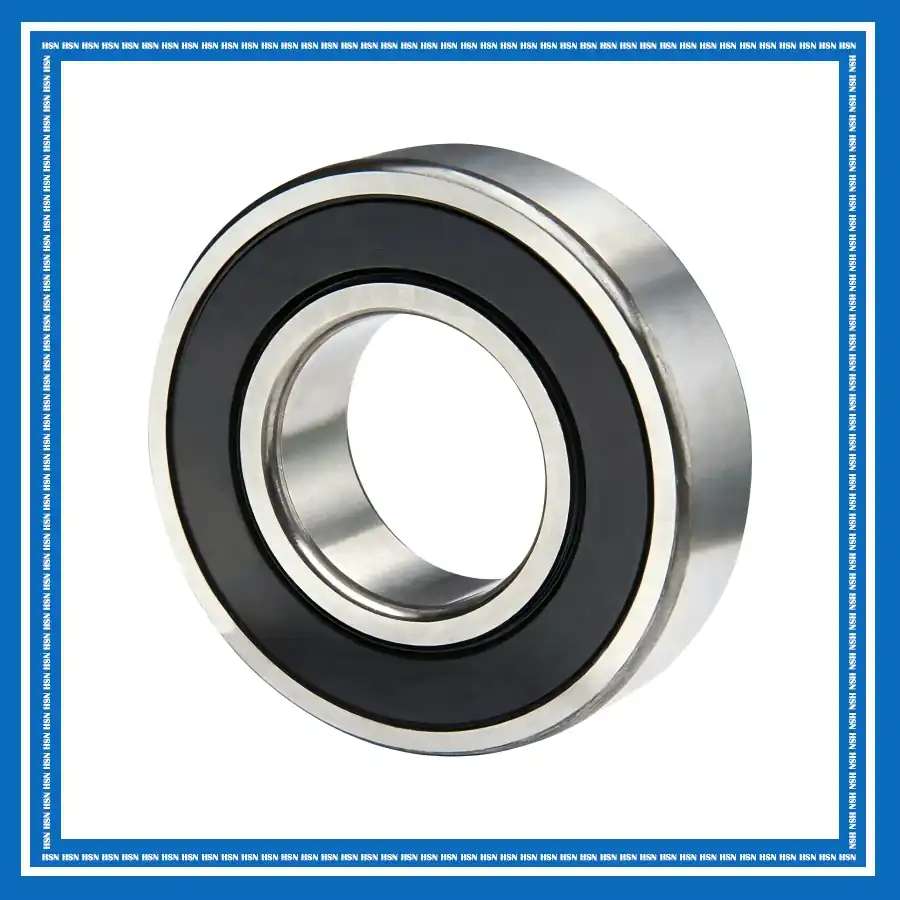

WS22226-E1-XL-2RSR
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: WS22226-E1-XL-2RSR
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 130 mm
Outer (D): 230 mm
Width (B): 75 mm
Weight: 12.8 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 760 KN
Basic Static Load Rating, Radial (C0r): 890 KN
Fatigue Load Limit, Radial (Cur): 79000 N
Limiting Speed (nG): 840 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description
The WS22226-E1-XL-2RSR FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, cages, and seals on both sides. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The E1 design provides high load carrying capacity, while X-life improves operating performance and service life. In addition, the 2RSR seals on both sides help retain lubricant and protect the bearing interior from contaminants, supporting reliable operation in environments exposed to dust and dirt.
The WS22226-E1-XL-2RSR bearing is suitable for material handling, agricultural machinery, construction machinery, mining and cement, industrial transmissions, and general industrial equipment. Its high load capacity and self-aligning capability support heavy loads and alignment deviations. Meanwhile, the sealed design helps reduce contamination and lubricant loss, making the bearing suitable for applications where reliable sealing and reduced maintenance are important.
