Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 100TDO515CD
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 247.650 mm 10.0000 in
Outer (D): 381.000 mm 19.5000 in
Width Over Cups (Wo ): 123.825 mm 9.7500 in
Width Over Cones (Wi): 158.750 mm 11.8750 in
Weight: 281 kg 620 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 4048 KN 910000 lbs
Static Capacity (C0) : 10142 KN 2280000 lbs
K Factor: 1.76
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

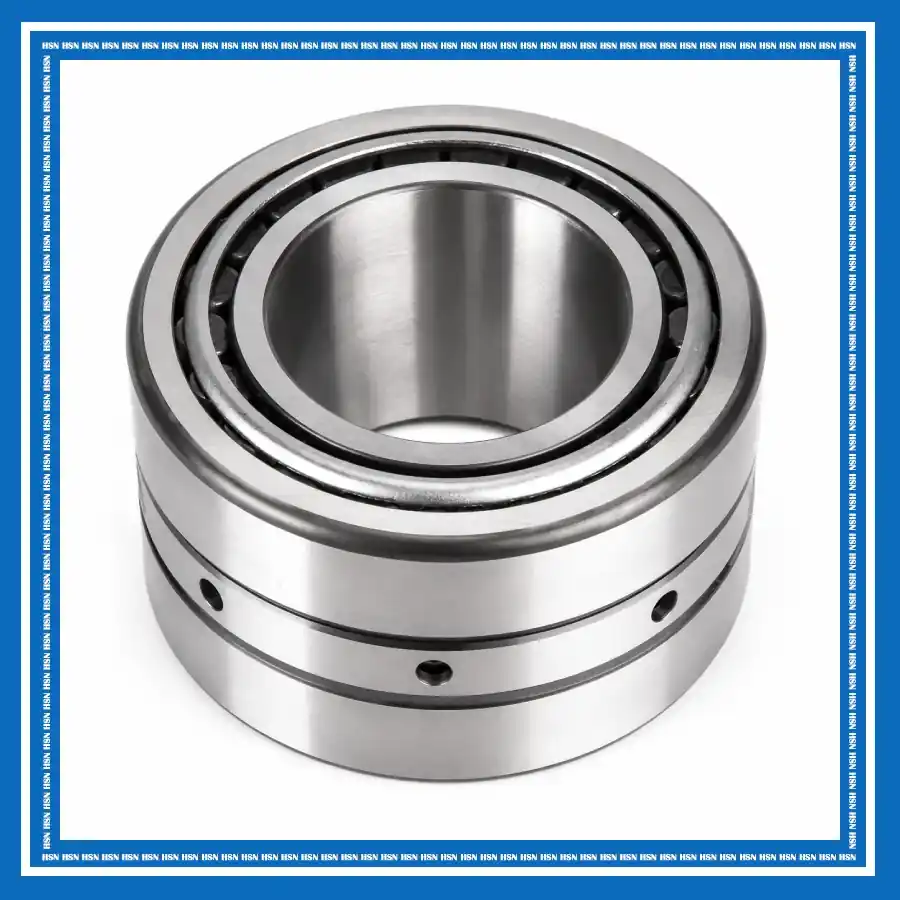

The American Roller Bearing 100TDO515CD double-row tapered roller bearing consists of a double outer ring, two single inner ring assemblies with tapered rollers and cages, and an inner ring spacer. Its opposed roller arrangement provides high radial load capacity and supports axial loads in both directions, while maintaining high rigidity and stable operation under heavy loads. The separable inner ring assemblies facilitate mounting, adjustment, and maintenance. It is suitable for industrial gearboxes, rolling mills, mining and construction machinery, material handling equipment, and other heavy-duty transmission systems requiring combined radial and bidirectional axial load support.
