239/750 YMB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 239/750 YMB
Category: Spherical Roller Bearings
1
Weight and Dimensions

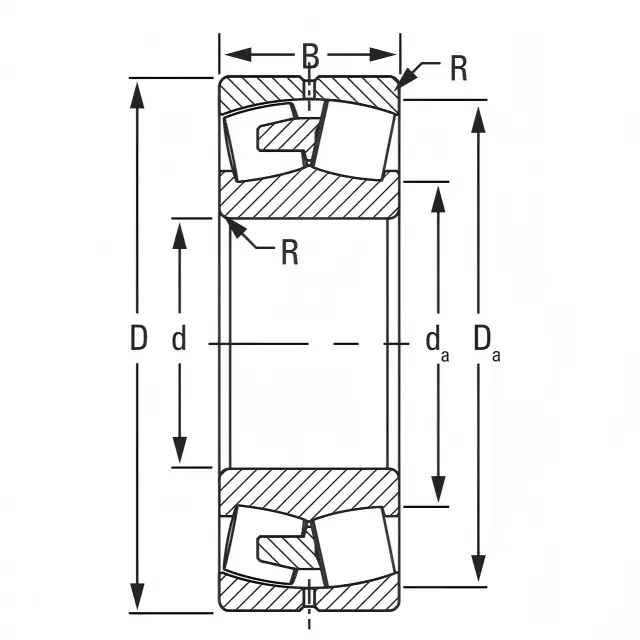

Bore (d): 750 mm 29.5276 in
Outer (D): 1000 mm 39.3701 in
Width (B): 185 mm 7.2835 in
Weight: 405.7 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C) : 6010 KN
Static Radial Load Rating (C0): 13400 KN
Thermal Reference Speed – Oil: 350 RPM
Thermal Reference Speed – Grease: 310 RPM
Limiting Speed: 650 RPM
e Factor: 0.16
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Bearings Guide
Product Description
The 239/750 YMB Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and a one-piece, inner-ring-piloted, machined-brass cage. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance machined-brass cage guided by the inner ring provides excellent strength, wear resistance, and reliable roller guidance, helping maintain stable operation under heavy loads, shock conditions, and demanding operating environments.
The 239/750 YMB bearing is widely used in mining equipment, crushers, conveyors, industrial gearboxes, rolling mills, and heavy-duty machinery. It is particularly suitable for applications requiring high load capacity, misalignment compensation, reliable roller control, and long service life under continuous or severe operating conditions.
