23964-K-MB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 23964-K-MB
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 320 mm
Outer (D): 440 mm
Width (B): 90 mm
Weight: 41 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1310 KN
Basic Static Load Rating, Radial (C0r): 2750 KN
Fatigue Load Limit, Radial (Cur): 201000 N
Limiting Speed (nG): 1700 r/min
Reference Speed (nϑr): 930 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

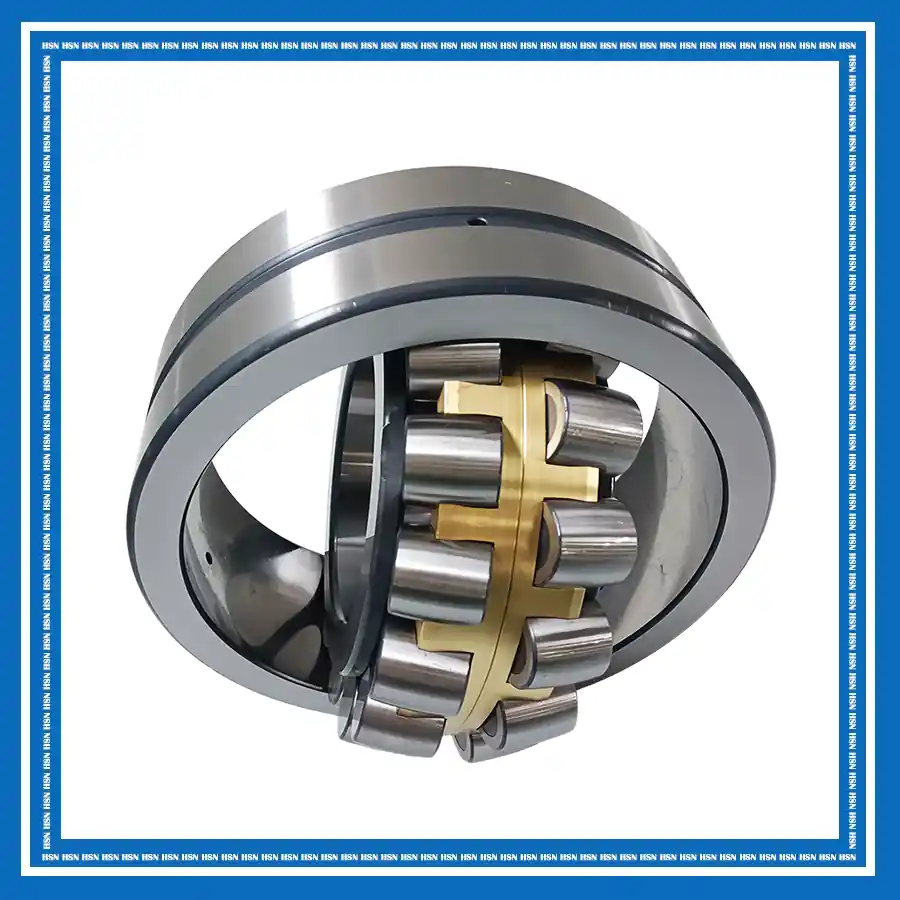

The 23964-K-MB FAG spherical roller bearing consists of an inner ring, outer ring, two rows of symmetrical spherical rollers, and a solid brass cage. Its self-aligning design compensates for angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The K tapered bore has a 1:12 taper, while the MB solid brass cage is guided on the inner ring, providing high strength and stable roller guidance under demanding operating conditions.
The 23964-K-MB bearing is suitable for paper machinery, steel and metallurgy, mining and cement, material handling, industrial transmissions, and heavy industrial equipment. Its high radial load capacity, self-aligning capability, and robust brass cage make it suitable for applications exposed to heavy loads, shaft deflection, vibration, and alignment deviations.
