240TQO758
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 240TQO758
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 609.600 mm 24.0000 in
Outer (D): 813.562 mm 32.0300 in
Width Over Cups (Wo ): 479.425 mm 18.8750 in
Width Over Cones (Wi): 479.425 mm 18.8750 in
Weight: 700 kg 1540 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 11565 KN 2600000 lbs
K Factor: 1.76
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

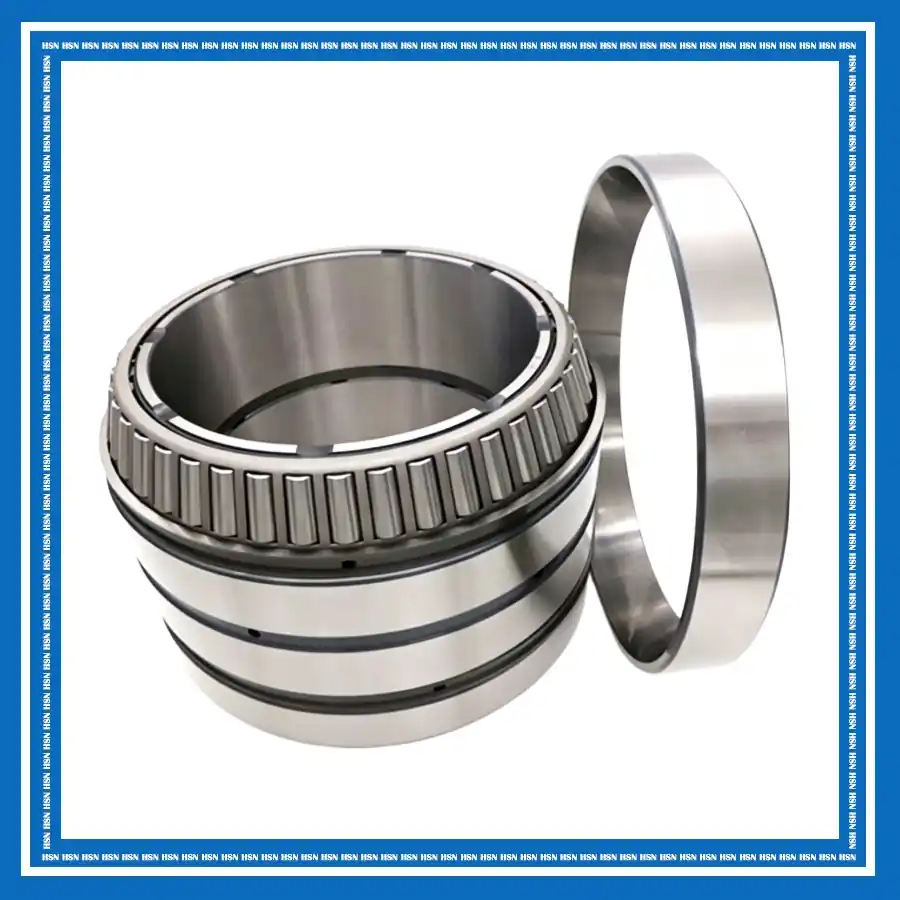

The ARB 240TQO758 four-row tapered roller bearing consists of two double cone assemblies, a double cup in the center, two single cups, cup spacers, and a cone spacer. Its thin cross-section and increased width provide high load capacity while allowing larger roll neck diameters for improved roll strength. The four-row tapered roller design supports heavy radial loads and axial loads in both directions, while optional cone face notches and helical lubrication grooves help improve lubrication and reduce galling and heat damage. It is specially designed for work rolls, intermediate rolls, and backup rolls in steel, aluminum, and other rolling mill applications.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
