249/950-B-K30-MB

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: 249/950-B-K30-MB

Category: Spherical Roller Bearings

1

Weight and Dimensions

Bore (d): 950 mm

Outer (D): 1250 mm

Width (B): 300 mm

Weight: 1013 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 10300 KN

Basic Static Load Rating, Radial (C_0r): 28500 KN

Fatigue Load Limit, Radial (C_ur): 1700000 N

Limiting Speed (n_G): 385 r/min

Reference Speed (n_ϑr): 101 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Spherical Roller Bearings Guide

Product Description

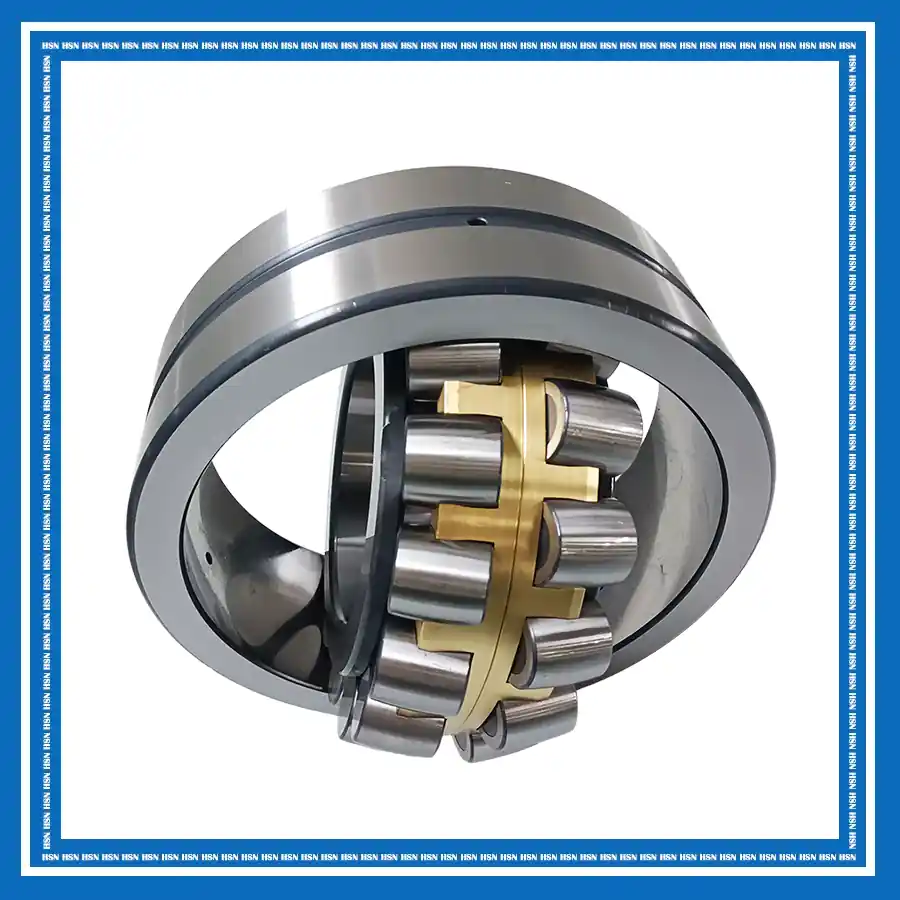

The 249/950-B-K30-MB FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, and a solid brass cage. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting very high radial loads and axial loads in both directions. The K30 tapered bore has a 1:30 taper, while the MB machined brass cage provides robust support under heavy-duty operating conditions.

The 249/950-B-K30-MB bearing is suitable for steel and metallurgy, mining and cement, power generation, paper machinery, material handling, and heavy industrial equipment. Its high radial load capacity and self-aligning capability make it suitable for heavy loads, shaft deflection, and alignment deviations. FAG application documentation shows large spherical roller bearings with K30 and MB designs in heavy power-generation applications, while FAG also specifies large MB spherical roller bearings for demanding paper-industry bearing positions.
