2558 / 2523-B
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 2558 / 2523-B
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 30.162 mm 1.1875 in
Outer (D): 69.850 mm 2.7500 in
Width (T1): 8.733 mm 0.3438 in
Width (B): 25.357 mm 0.8438 in
Width (C): 19.050 mm 0.7500 in
Weight: 0.48 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 83700 N
Dynamic Radial Load Rating – 90M Revs (C90) : 21700 N
Dynamic Axial Rating – 90M Revs (Ca90): 10200 N
Static Radial Load Rating (C0): 94400 N
e Factor: 0.27
K Factor: 2.14
Y Factor: 2.19
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

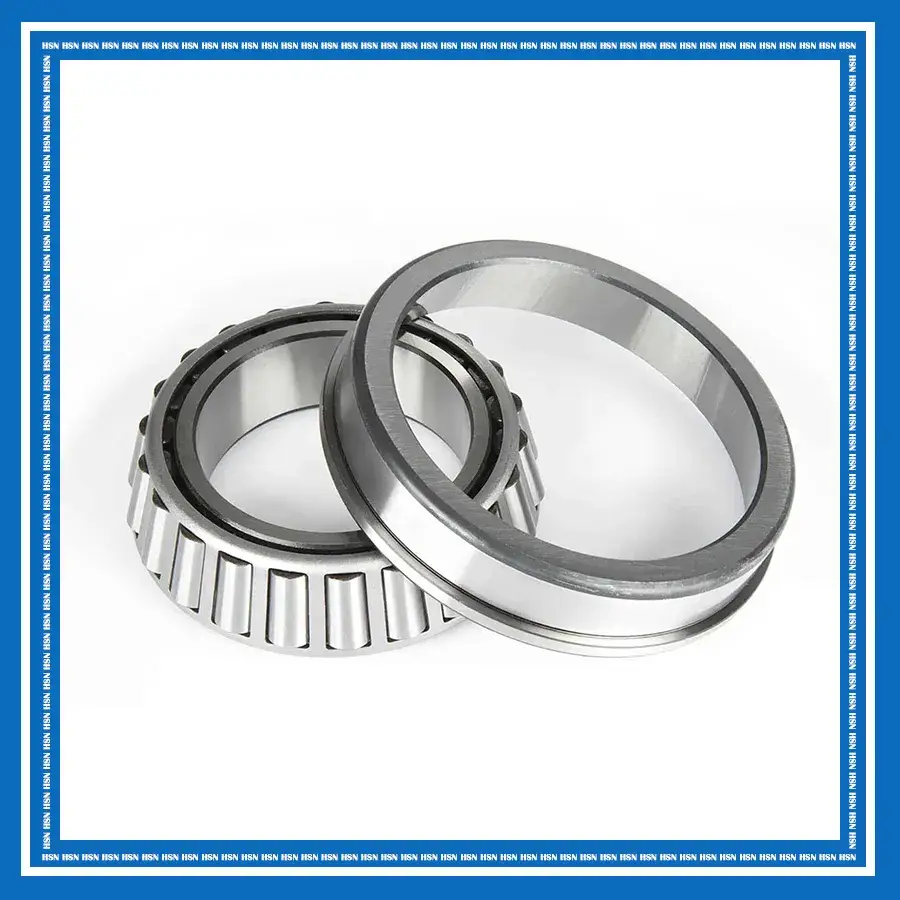

The 2558 / 2523-B Timken TSF tapered roller bearing features a single-row tapered roller bearing design with a flanged outer ring. The flange provides accurate axial positioning of the outer ring within the housing, while through-bored housing designs help achieve precise alignment of the bearing seats. This configuration simplifies installation and improves mounting stability in applications requiring reliable positioning and consistent operating performance.
The 2558 / 2523-B TSF bearing is widely used in industrial equipment, gearboxes, agricultural machinery, construction machinery, and other applications where accurate bearing location, reliable load support, and long service life are required.
